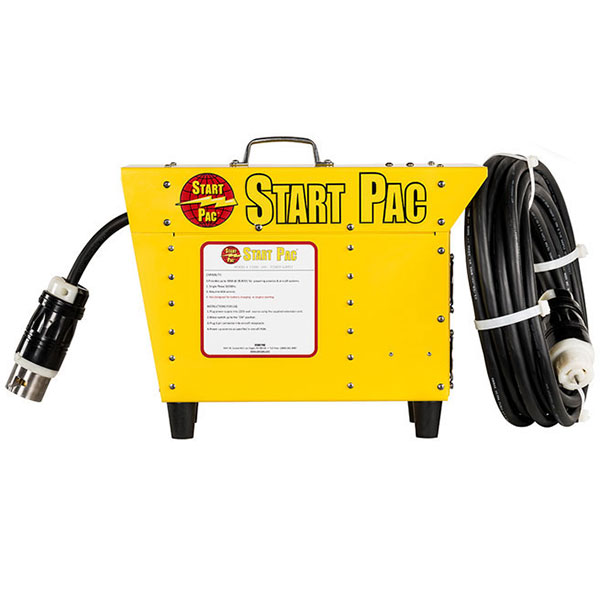

Start Pac Portable Power Supply Model 53200

$4475.00/Each
Quantity
Add to Wishlist
Part# 11-12849
MFR Model# 53200(2/0,#10)

Overview

Start Pac® Model 53200 is a 28.5 Volt continuous DC power supply when plugged into 220Volt single-phase AC power. This unit will deliver full 200 amp DC output, but will not provide enough current for engine starting. Therefore this unit is designed for maintenance and to power up various functions such as inverters, avionics, GPS, and air conditioning.

Note: This unit is NOT designed for engine starting or battery charging.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

Maximum Continuous Current output 200 A
DC voltage output 28 VDC
AC voltage input 180 - 240 VAC
AC current input at maximum DC power output 27 A @220VAC
Phase Single
Forced air-cooling Yes
Over current protection Yes
Over voltage protection Yes
Over temperature protection Yes
Complete weight with aircraft cables 47lbs / 21kg
Dimensions Length x Width x Height 20″ x 8″ x 13″ (51 x 20 x 33 cm)
