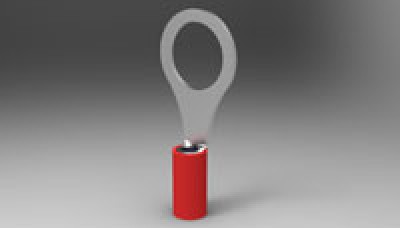

Ring And Spade Tongue Terminals 5/16 Stud Size

$0.97/Piece
Quantity
Add to Wishlist
Part# 11-09313
MFR Model# 320572

Overview

  • Terminal Shape : Ring Tongue
  • Receptacle Style : Straight
  • Body Style : PIDG
  • Barrel Type : Closed Barrel
  • Wire/Cable Type : Regular Wire



California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Terminal Shape: Ring Tongue
  • Receptacle Style: Straight
  • Body Style: PIDG
  • Barrel Type: Closed Barrel
  • Wire/Cable Type: Regular Wire
  • Insulation: Yes
  • Insulation Support: Insulation Support
  • Insulation Diameter (mm [in]): 3.56 [.140] Max.
  • Stud Diameter (mm [in]): 7.92 [0.312]
  • Stud Size: 5/16 [M8]
  • Shape: RING-041
  • Heavy Duty: No
  • Material: Copper
  • Finish: Tin
  • Color: Red
  • Insulation Material: Nylon

Specifications

  • Wire Range (mm [AWG]): 0.30-1.40² [22-16]
  • Wire/Cable Size (CMA): 509 – 3,260
  • Tongue Material Thickness (mm [in]): 0.84 [0.033]
  • Voltage (VAC): 300
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Tracey M Verified Purchase

TE PIDG Red Ring Tongue Terminal 22-16 Awg 5/16 3-1.42MM 320572

February 8, 2024

Justin D Verified Purchase

TE PIDG Red Ring Tongue Terminal 22-16 Awg 5/16 3-1.42MM 320572

July 4, 2022

Very short delivery time to europe

Benno B Verified Purchase

TE PIDG Red Ring Tongue Terminal 22-16 Awg 5/16 3-1.42MM 320572

April 8, 2022

Douglas L Verified Purchase

TE PIDG Red Ring Tongue Terminal 22-16 Awg 5/16 3-1.42MM 320572

July 27, 2021

High quality AMP ring terminal with nylon insulation.

Ronald G
July 11, 2019

Item received as described....the item pictured looks like an automotive (vinyl insulator) style. Item received was nylon, PIDG.

Brian H
November 3, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Stud sizes 4-10 on telectrical spade terminals are the sizes small to large? For example is 4 the size of the screw m4?

The stud size is in reference to the machine screw size used on that ring tongue terminal. The #4 screw is the smallest diameter, and the larger numbers indicate bigger diameter screws.
