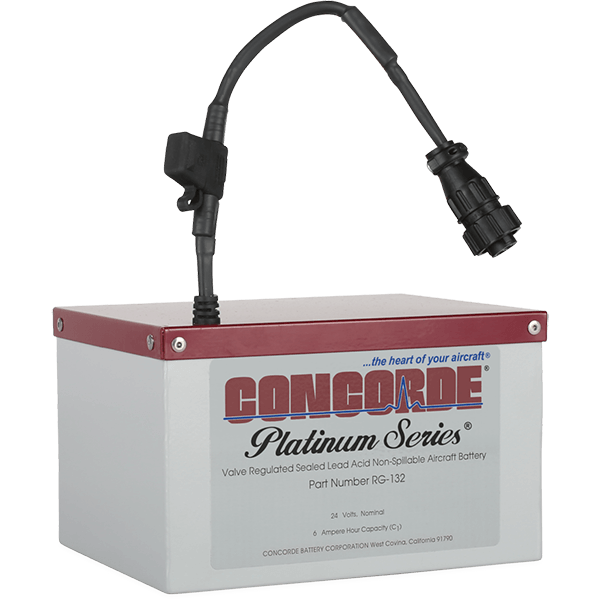

Concorde Sealed Battery RG-132

$3589.00/Each
Quantity
Add to Wishlist
Part# 11-10853
MFR Model# RG-132

Overview

Avionics Battery for lighting, standby, emergency power. Protects and extends the life of other avionics. Concorde's Emergency Batteries float directly on the DC buss with no need for a dedicated charger. This results in a high inrush current which extends battery life with fast recovery time from discharge. With the battery floating directly on the buss, transient spikes in the DC power are absorbed. These batteries are self regulating on charge and will take only the current required to maintain it at full charge.

Recombinant Gas - The RG Series are low resistance, valve regulated lead acid (VRLA) batteries.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Maintenance free
  • Constructed with non removable vent valves no addition of electrolyte or water required
  • Factory tested to assure airworthiness
  • Shipped fully charged and ready to install
  • Manufactured with absorbed glass mat separators (AGM)
  • RG Series batteries ship Hazmat Exempt
  • Glass Panel Application

Specifications

  • C1 @ 23°C (74°F) = 6.0 Ah
  • C1 @ -18°C (0°F) = 4.0 Ah
  • C1 @ -30°C (-22°F) = 3.0 Ah
  • Primary Aircraft Purpose: Emergency Aircraft Battery
  • Voltage: 24
  • Rated Capacity C1 = 1 hr. rate in ampere hours: 6.00
  • Max Weight: 14.50 lb / 6.6 kg
  • RG-132: Not Rated for Engine Starting

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does Concorde battery RG-132 have FAA certification?

Yes. It is FAA TSO authorized.
