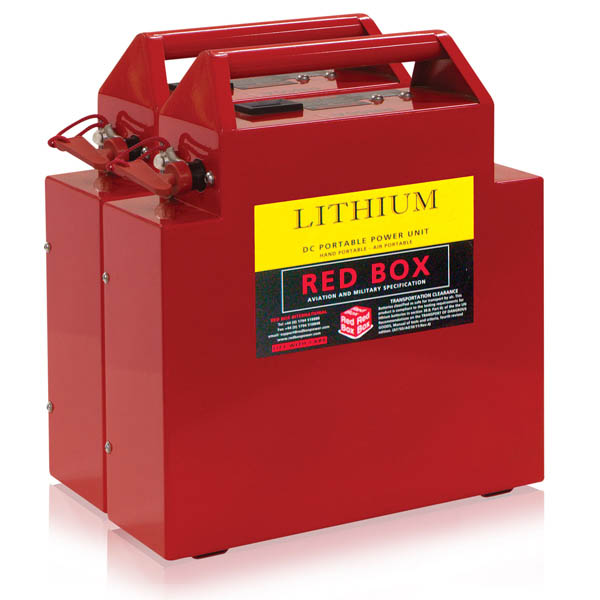

Start Power Rbl4000-28Twin Power Unit8 000 Amps / 28 Volts
$9044.00/Each
Part# 11-15553
MFR Model# RBL4000-28TWIN
MFR Model# RBL4000-28TWIN
FREE Shipping
Overview
|
The Red Box hand portable packs are some of the most powerful Hand Portable Packs available worldwide. Red Box uses the latest in military aerospace technology to achieve a very high power to weight ratio. These power packs are designed for starting of piston, turboprop or turbine aircraft and helicopters in the field or in remote locations and Red Box units may be carried safely on board all aircraft. The power packs are “all weather” units and being modular, can be used in single or dual format. They can be used or stored in any orientation, even inverted. Cells used are cleared as non-hazardous cargo for carriage in the aircraft. They are able to operate in extremes of temperature and have excellent standby characteristics. They are maintenance free and do not require cycling. They can be re-celled “on condition” at any Red Box service center in the world and are designed to give years of repeated service. In addition to aviation, these highly portable units can be used with Armored Fighting vehicles and Military equipment. They can be recharged from the automatic charging system, which is supplied in the package, or from any vehicle using a suitable interface. Volts DC: 28 Peak Amps: 3,000 Maximum S/C Amps: 8,000 Battery Typ: Lithium Weight: 23.2 kg |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Totally weather protected.
- Air transportable.
- Maintenance free.
- Tough and compact.
- No memory effect.
- Works in any orientation.
- High charge retention.
- Long shelf life.
- Fast recharge.
- External charger for prolonged unit life.
- No cycling.
- Leak proof.
- Cells replaceable on condition.
- Heavy duty engine starting of turbo prop, turbine, aircraft and helicopters.
- Starts Main Battle Tanks.
- Starts Armoured Fighting Vehicles.
- Lightweight portable start power at remote locations.
Specifications
- Max amps: 3000 (Nom. short circuit current)
- 8000 (Max. short circuit current)
- Capacity: 56 Amp Hrs @ 10hr rate
- Max voltage: 28v DC
- Size: 2 x L350 W100 H380 mm
- Weight: 23.2 kg
- Operating Temp: -30°C – + 60°C
- Case: Aluminium
- Voltage Indication: Digital to IP65
- Auxiliary Protection: Circuit breaker 40A
- Aircraft Cable: 2m heavy duty cable with aircraft connector
- Charger: 2 x 4 A Electronic universal AC input.
- Towbar Available: 50 mm ball
Documents
- MSDS (PDF)
In The Box
- 2 x Charger
- Output Cable
- Parallel Joining Cable
- 2 x Thermal Protection Bag
