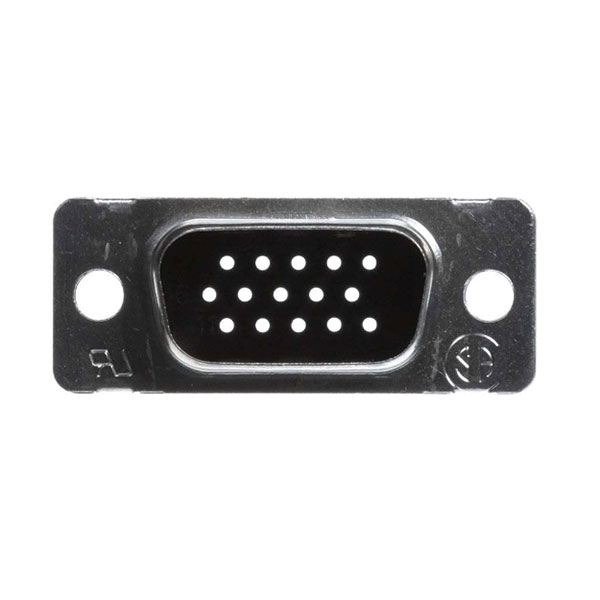

D-Sub High Density 15 Pin 3 Row Connector

$5.85/Each
Quantity
Add to Wishlist
Part# 11-16005
MFR Model# 748364-1

Overview

Plug for Male Contacts Housing D-Sub, High Density Connector 15 Position.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Connector Style: D-Sub, High Density
  • Connector Style: Plug for Male Contacts
  • Number of Positions: 15
  • Number of Rows: 3
  • Shell Size, Connector Layout: 1 (DE, E) High Density
  • Contact Type: Signal
  • Mounting Type: Free Hanging (In-Line)
  • Flange Feature: Housing/ Shell (Unthreaded
  • Features: Grounding Indents
  • Shell Material, Finish: Steel, Tin Plated
  • Dielectric Material: Polyamide (PA), Nylon, Glass Filled
  • Color: Black
  • Note: Contacts Not Included

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What part number is the backshell for this specific connector? (I don’t want to accidentally order the one that’s for a 15 pin connector that has only two rows instead of three)

Part # 11-13015. 15 pin silver sub-d connector clamp housing
