Overview

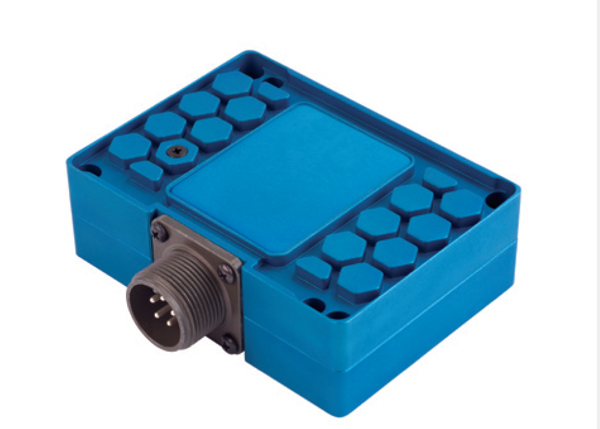

| The highly efficient TC120 DC-to-DC Converter produces 120 watts of power from an aircraft’s 28 VDC input. Engineered to run cooler and featuring a fanless design, the TC120 saves energy and reduces weight. It produces enough energy to power electronic equipment throughout the aircraft, including in-seat, cabin and cockpit power applications. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Supplies 120 watts of 5 to 18-volt power to electronic equipment, including USB charging ports, lighting and cabin accessories
- Compact design — lighter and smaller than competing units
- Lightweight — 0.6 lbs
- Remote On/Off
- 120 watts output power
- >90% efficiency
- Input Voltage: 24 – 32 VDC
- Input Current: 5.0 A Nominal
- Output Voltage: 5 – 18 VDC
- Input transient, overload, and short-circuit protection
- Rated from –65°F to +160°F (-55°C to +70°C)
- FAA TSO-C71 certified and RTCA DO-160G qualified
- Designed and built in Wichita, Kansas, USA
- Two-year limited warranty
Specifications
- Input Voltage: 24 – 32 VDC
- Input Current: 5.0 A Nominal
- Output Voltage: 5 – 18 VDC
- Output Power: 120 watts
- Efficiency: >90%
- Weight: 0.6 lbs
- Altitude: 55,000 ft
- Temperature: -65°F to +160°F (-55°C to +70°C)
- Protection: Input transient, overload, short-circuit protection
- Mating Connector: MS3106A-14S-5S
- Case: Anodized aluminum, blue
- Certification: FAA TSO-C71 certified / RTCA DO-160G qualified
