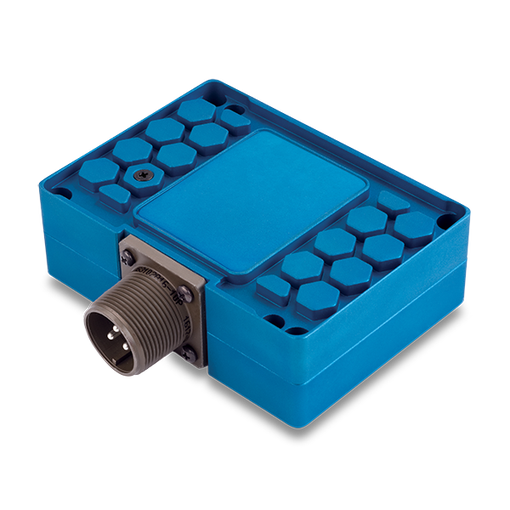

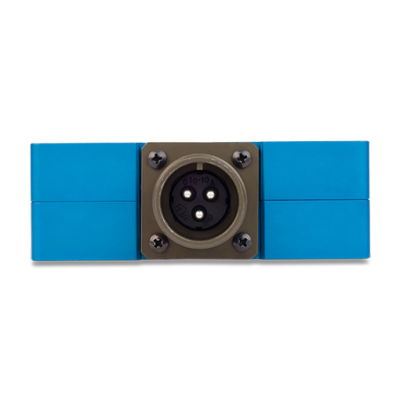

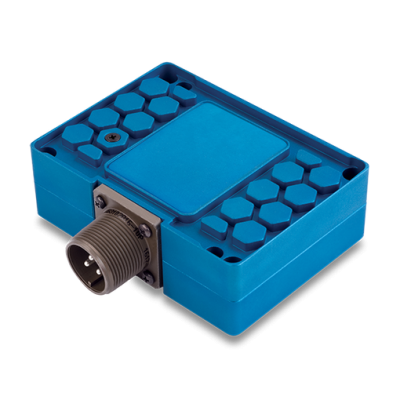

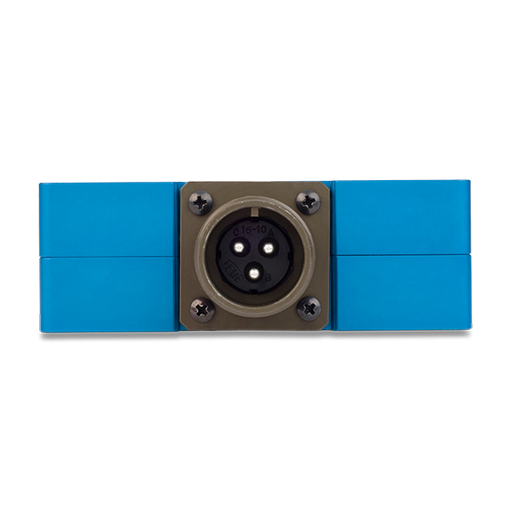

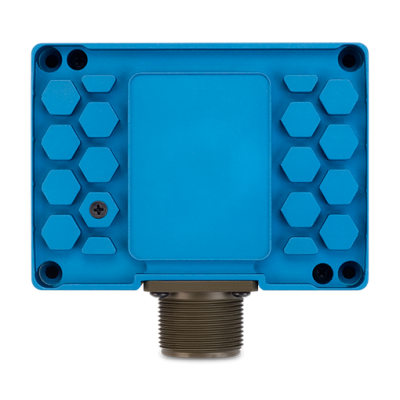

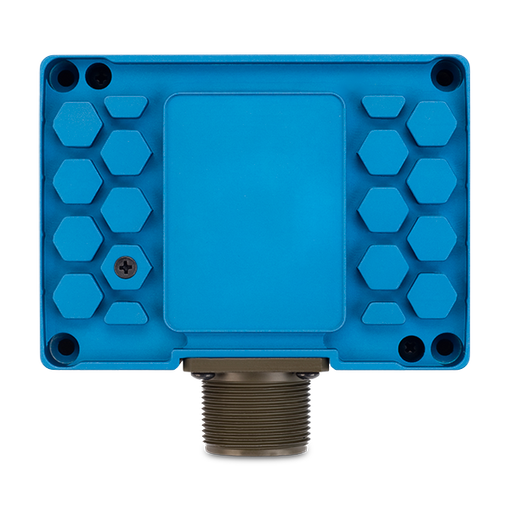

True Blue Power TC240 DC To DC Voltage Converter 6430240-2
$995.00/Each
Part# 11-17844
MFR Model# 6430240-2
MFR Model# 6430240-2
FREE Shipping
Overview
|
24-32 VDC in, 5-24 VDC out, 18A, 240 watts, With remote on/off feature
The TC240 aircraft voltage converter supplies 240 watts of 5 – 18 volt power to electronic equipment, lighting and aircraft cabin accessories. Engineered with a fanless design, the TC240 converter is smaller and lighter than competing units. The 6430240-2 has a remote on/off feature, is FAA TSO certified, and is easy to install in your aircraft’s floor or cabin wall. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Supplies 240 watts of 5 to 24-volt power to electronic equipment, including lighting and cabin accessories
- Lightweight — 0.7 lbs
- 240 watts output power
- 95% efficiency
- Input Voltage: 24 – 32 VDC
- Input Current: 10.0 A Nominal
- Output Voltage: 5 – 24 VDC adjustable
- Input transient, overload and short circuit protection, temperature monitoring, reverse polarity
- Rated from –67°F to +158°F (-55°C to +70°C)
- Remote On/Off (included)
- Mating Connector: MCI P/N 9018655 (included)
- FAA TSO-C71 certified and RTCA DO-160G qualified
- Designed and built in Wichita, Kansas, USA
- Two-year limited warranty
Specifications
- Input Voltage:
- 24 – 32 VDC
- Input Current:
- 10.0 A Nominal
- Output Voltage:
- 5 – 24 VDC adjustable
- Output Power:
- 240 watts
- Efficiency:
- 95%
- Weight:
- 0.70 lbs (0.32 kg)
- Altitude:
- 55,000 ft
- Temperature:
- -67°F to +158°F (-55°C to +70°C)
- Protection:
- Input transient, overload and short circuit protection, temperature monitoring, reverse polarity
- Remote Controle:
- Remote On/Off Included
- Mating Connector:
- MCI P/N 9018655 (included)
- Case:
- Anodized aluminum, blue
- Certification:
- FAA TSO-C71 certified
- RTCA DO-160G qualified
