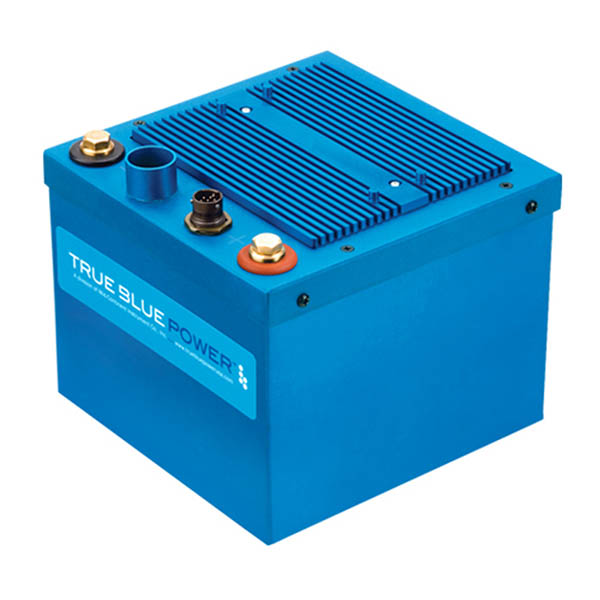

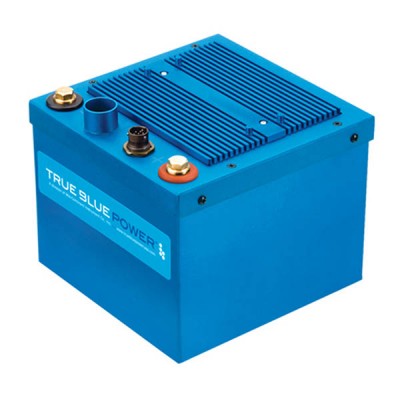

True Blue Power Lithium-Ion Battery 6430017
Select Version:
Quick Disconnect

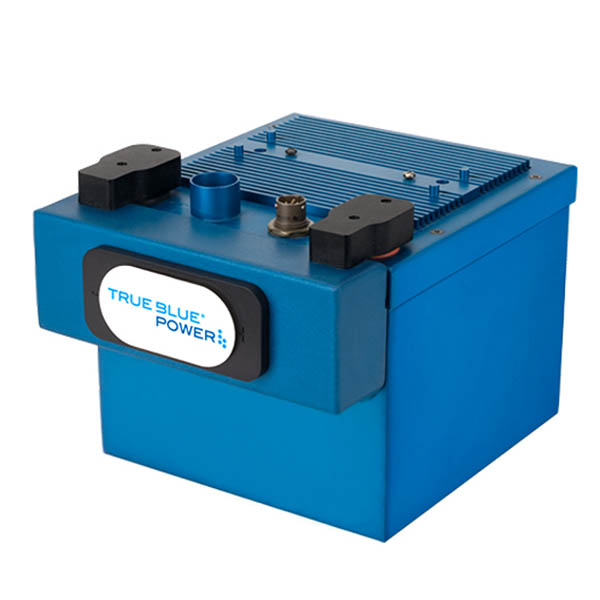

On/Off Feature On/Off Feature & Quick Disconnect
FREE Shipping
Overview
| Ideal for the piston, turbine, and emergency power market, the TB17 Advanced Lithium-ion Battery starts the aircraft’s engine quickly and features superior energy density — NanoPhosphate® lithium-ion cells offer 3x the energy per kilogram, resulting in a battery that is 45% lighter than lead-acid or nickel-cadmium alternatives. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- 17 amp-hour battery nominal at 23°C/73.4°F
- Weighs 16 lbs. — 45% lighter than lead-acid or nickel-cadmium alternatives
- Advanced NanoPhosphate® lithium-ion cell chemistry — 3x the energy per kilogram when compared to lead-acid and nickel-cadmium cells
- 7 engine starts in 7 minutes
- 30 minutes (at 34 amps) for complete recharge when the battery is fully discharged
- Automatic internal heater
- Superior performance at extreme temperatures (-40°C/-40°F to 70°C/158°F)
- Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
- Communicates battery status to the cockpit
- Higher voltage during engine start — Less wear, less maintenance and increased useful life
- 2-year maintenance interval — 50 – 90% savings on maintenance costs
- 8 years (average) useful life
- Designed and built in Wichita, Kansas, USA
- Two-year limited warranty
- FAA TSO certified
Specifications
- Model Number: TB17
- Part Numbers: 6430017-1, 6430017-2, 6430017-3, 6430017-4
- Capacity: 17 amp-hour nominal at 23°C/73.4°F
- Charge Voltage: 28 VDC nominal
- Output Voltage: 26.4 VDC nominal
- Output Current: 500A continuous, 840A max
- Technology: Advanced NanoPhosphate® lithium-ion cell chemistry
- Protection: Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting
- Energy Density:
- 64.4 Wh/kg
- 87.1 Wh/liter
- Operating Temperature: -40°C to 70°C (-40°F to 158°F)
- Weight: 16 lbs (7.26 kg)
- Dimensions: 7.22” L x 7.37” W x 6.01” H
- Configuration: 7P8S; 7 parallel cells x 8 series modules
- Maintenance: 2-year maintenance interval; offers 50 – 90% savings on maintenance costs
- Useful Life: 8 years (average)
- Case: Anodized aluminum, blue
- Certification:
- FAA TSO-C179b (Class A-4B)
- RTCA DO-311A
- RTCA DO-160G
- UNDOT/IATA
