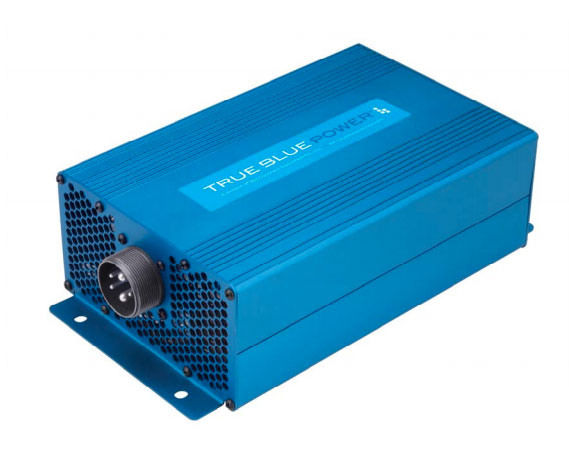

True Blue Power Inverter TI1202
$5725.00/Each
Part# 10-07612
MFR Model# 6431200-8
MFR Model# 6431200-8
FREE Shipping
Overview
| True Blue Power Inverter TI1202 1200 VA, 240 VAC, Output 50Hz sine wave |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Supplies 1200 watts of power to multiple cabin accessories, galley equipment and entertainment systems
- Ideal for use in special mission and VIP cabin configurations.
- Compact design — 30% smaller than competing products
- Lightweight — 7.3 lbs
- 88% efficiency
- Input transient, overload and short-circuit protection — up to 150% of rated load without damage
- Remote On/Off optional
- FAA TSO-C73 certified
- EASA ETSO-C73 certified
- RTCA DO-160G qualified
- Designed and built in Wichita, Kansas, USA
- Two-year limited warranty
Specifications
- Input Voltage: 20 – 36 VDC
- Input Current: 60A at 28 VDC input
- Output Voltage: 240 VAC ± 3%
- Output Power: 1200 VA
- Output Frequency: 50 Hz ± 0.1%
- Output Waveform: Single phase, true sine wave, < 3% total harmonic distortion
- Weight: 7.3 lbs (3.31 kg)
- Altitude: 55,000 ft
- Humidity: Tested to greater than 95% for 10 days, temperature cycle of 75° F to 160° F
- Temperature: -67° F to +158° F (-55° C to +70° C)
- Integral Cooling: Dual, electronically-controlled brushless fans
- Mating Connector: 9017235-1 (connector)
- 9017235-2 (cable clamp)
- Case: Anodized aluminum extrusion, blue
- Certification: FAA TSO-C73 certified
- EASA ETSO-C73 certified
- RTCA DO-160G qualified
