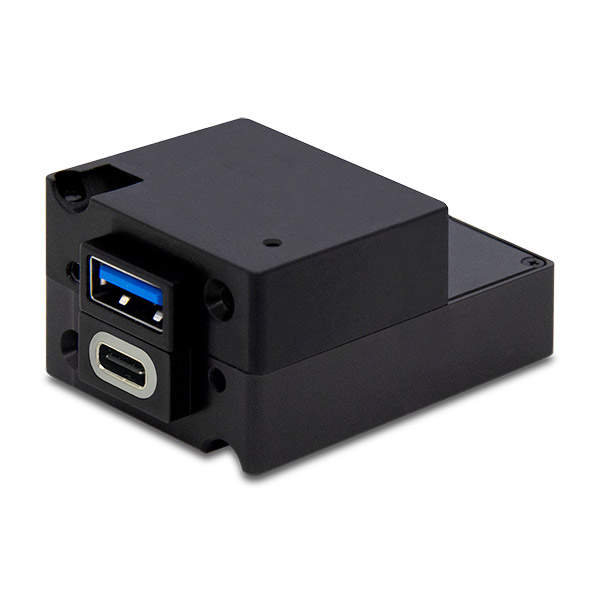

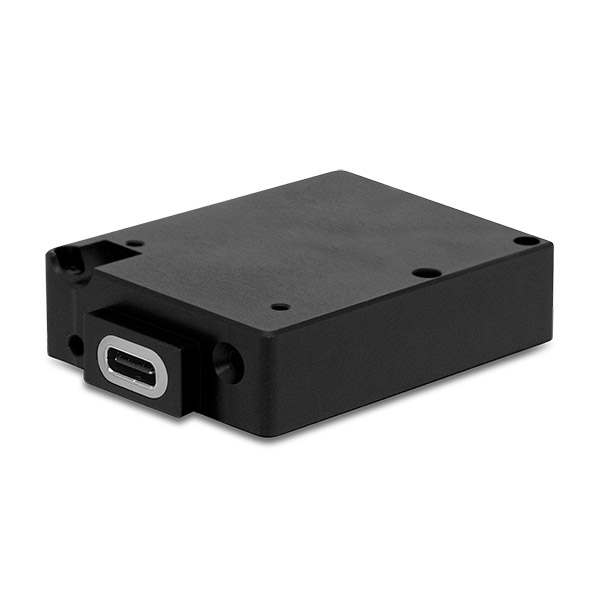

True Blue Power MAX Power USB Chargers - TA360 Series
From $372.00 to $1223.00
Overview
|
The TA360 Series MAX Power USB Charging Port is a certified accessory that charges any electronic device that uses either a USB Type-A or USB Type-C charging connector.
The TA360 supports the latest version of the USB charging standard, known as USB Power Delivery (PD) version 2.0 and 3.0. This smart charger provides intelligent negotiation with the connected cable and device to supply variable voltage at up to 5 amps, allowing up to a total of 100 watts of charging power. This provides maximum charging speed to a wide variety of the latest electronic devices, including mobile phones, tablets - even laptops - and more. The TA360 can determine the maximum power the device can support and will charge the device at the maximum speed allowed, while preventing the device from being overcharged or charged incorrectly. The TA360 also incorporates True Blue Power’s proprietary Cable-Drop Compensator which cancels the effect of voltage lost through the cable, extending the flexibility of cable/device combinations while maintaining the fastest charging possible. The TA360 accepts an input of 22-32 volts DC from the aircraft and converts it to an output voltage from 5 to 20 volts DC, at a current up to 5 amps per port. The TA360 incorporates the latest USB Type-C connector to supply PD power, offering a smaller and reversible port connection, in either a single or dual port configuration. Additionally, a version is available that includes a traditional USB Type-A port combined with a USB PD Type-C port to support both legacy and newer cables and devices. Each version is available with or without lighting to conveniently locate the charging ports in low-light conditions. The unit has built-in protections for short circuit, over-current, and low voltage conditions. It is designed to protect against reverse polarity installation and has temperature monitoring and shutdown capability, allowing the unit to handle unforeseen conditions safely. The TA360 is certified to FAA/TSO-C71 and qualified to multiple RTCA DO-160G environmental conditions for ease of installation and incorporation on any class or type of aircraft. The unit is easily mounted with two screws and a two-wire power input and can be installed throughout the aircraft, including the cockpit, cabin, galley, or other locations. Small, compact, powerful, and with plenty of installation flexibility, the TA360 is an ideal choice in any aircraft to charge the latest electronic devices at maximum speed. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Input Voltage: 22-32 VDC
- Input Power: 135 watts max; 4.8 amps @ 28 VDC
- Output Voltage: Auto-adjustable:5VDC, 9VDC, 15VDC, 20VDC per port
- Output Power: 5.0 amps max per port
- Efficiency: ~90% nominal
Documents
- Installation Manual (PDF)
- Technical Data Sheet (PDF)
