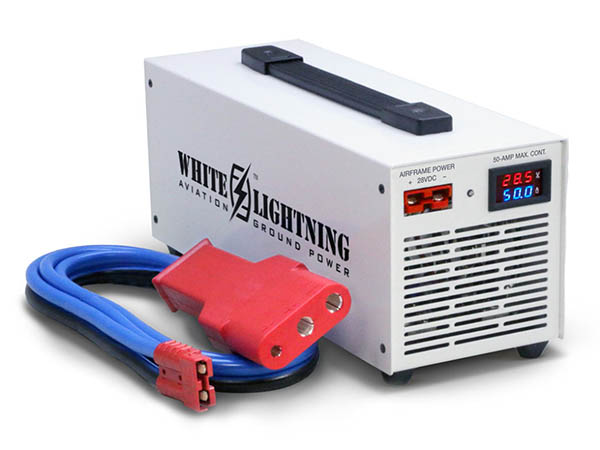

White Lightning M2850 50-amp 28-volt GPU with 3-pin Oval Plug

$1195.00/Each
Quantity
Add to Wishlist
Part# 11-19265
MFR Model# M2850

Overview

The M2850 Mini-GPU is a specialized switching-mode power supply designed to provide pilots and aviation maintenance professionals with a portable, affordable source of stable, high-current, noise-free DC power that replicates the in-flight electrical environment. Its rated output is 28-volts up to 50-amps (approximately 1500 watts). The GPU’s intended purpose is to energize an aircraft’s main electrical bus without using the ship’s battery or engine. It will safely provide continuous power for the most delicate electronics and airframe systems up to its full rated output.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

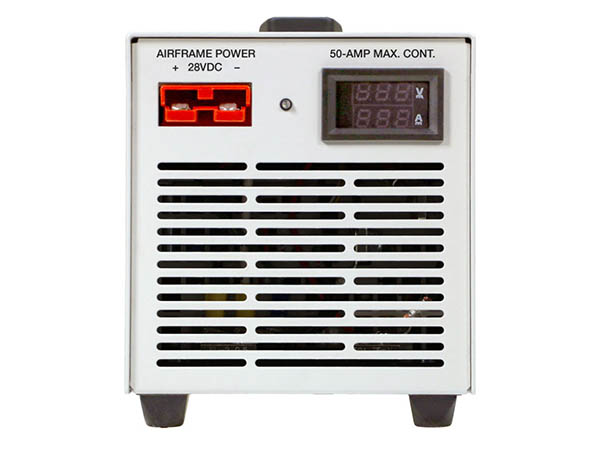

  • Color-coded, keyed SB-50 type output connection to prevent accidental voltage mismatch. RED designates 24/28 volt compatibility.
  • Digital output meter shows voltage and amperage (load)
  • Front panel status indicator LED

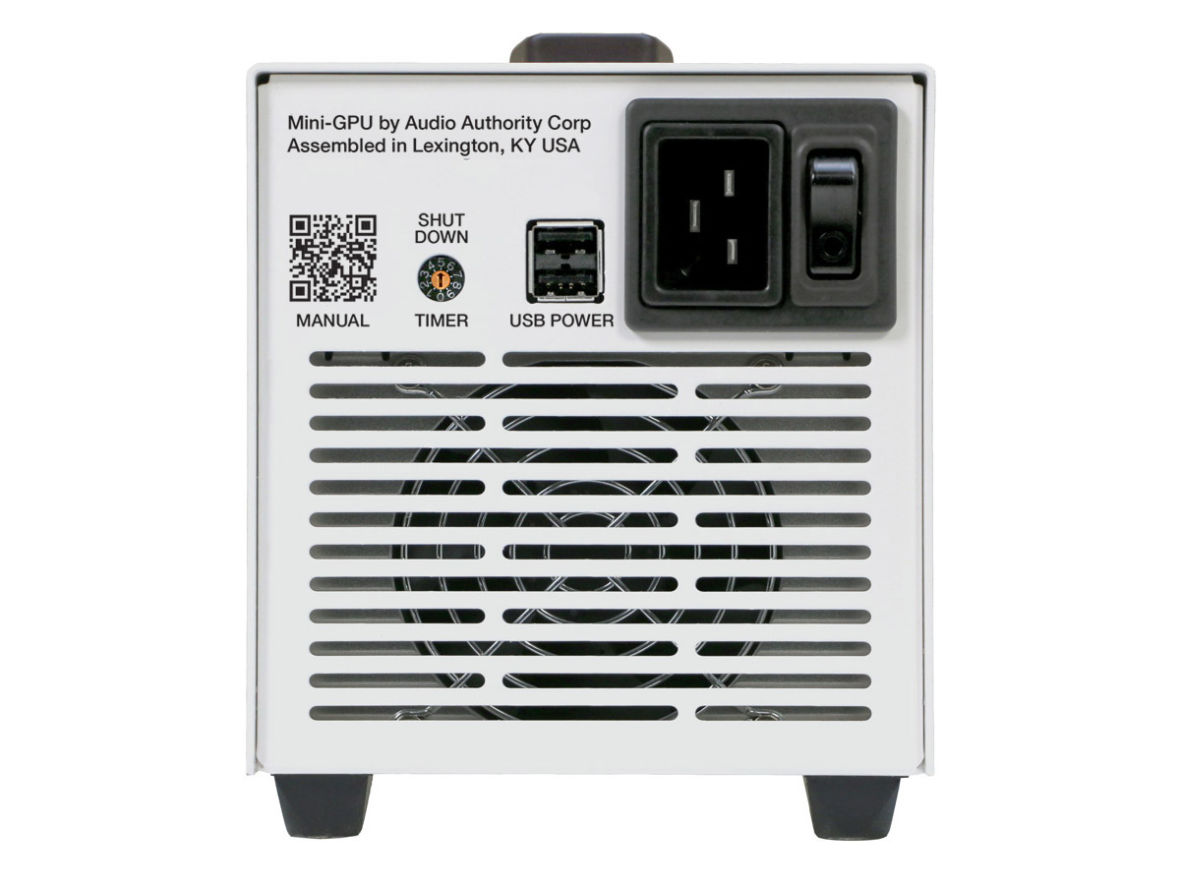

  • Programmable auto-shutdown timer and dual USB power ports for mobile device charging
  • QuietFiltered output for interference-free COM radio operation
  • Auto protection/recovery from short circuit, reverse polarity, over voltage/load/temperature

Specifications

  • Input Voltage: Universal 90-264 volts AC, 47-63 Hz
  • Input Current: 17A @ 115 volts AC
  • Input Protection: 20A circuit breaker, cycle ON/OFF to reset
  • Output: 28.50 +/- 0.25 VDC, 50 amps max cont.
  • Output Cable: 4 AWG, SB-50 to 3-pin oval AN2551 (NATO)
  • Chassis Dimensions: 6.4” H x 5.32” W x 14.63” L
  • Carry Weight w/cables: 17 lbs
  • Carton Dimensions: 10” H x 10” W x 18” L
  • Shipping Weight: 18.3 lbs
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can we use the White Lightning M2850 50-amp 28-volt GPU with 3-pin Oval Plug for engine start?

No, this is used for maintenance and avionics/electrical testing. This GPU delivers power to the bus and bypasses the battery.

Q: Will this be suitable for performing a gear swing on a Cessna 210. I believe the gear motor circuit breaker is 30 amps. I assume it would but given that you cant muse it to start the engine makes me wonder.

Per the manufacturer, "a gear swing would be okay, so long as there were not a number of other stacked functions going on (thereby requiring more amps)."
