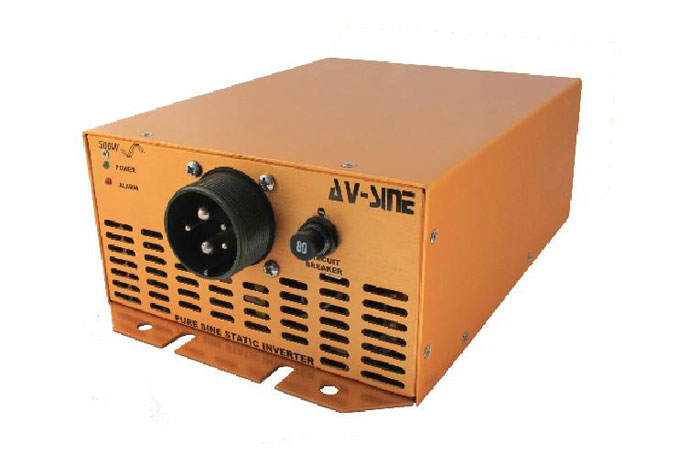

Lone Star Dc-AC Inverter

Select Wattage:
500 Watts1000 Watts
Quantity
Add to Wishlist

Overview

Lone Star Aviation's new inverter line boasts cutting edge DC/AC 60Hz technology in addition to innovative circuitry to operate most DC-AC applications within the following markets, i.e. commercial, industrial, solar, aviation and military. The DC/AC inverter is a high reliability model that is mission ready and TSO approved for airborne applications.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Size: (500 watt) 6.125W x 3.375H x 8.0L, (1000 watt) 6.125W x 3.375H x 10.65L
  • Input Voltage: 28VDC (Nominal)
  • Regulation: 1%Line, 1% Load, 2.5% Temp
  • Operating Temp: -55C to +70C
  • Circuit Protection: OV, UV, SC, SP, RP, OC
  • Total Harmonic Distortion: 2-3%
  • Altitude: 55,000 Ft.
  • Thermal Design: ( Dual )Tube-axial Fans
  • Easy Installation - remote on/off
  • Light Weight: (500W) 3.7 lbs. , (1000W) 6.4 lbs.
  • FAA Approved - TSO-C73
