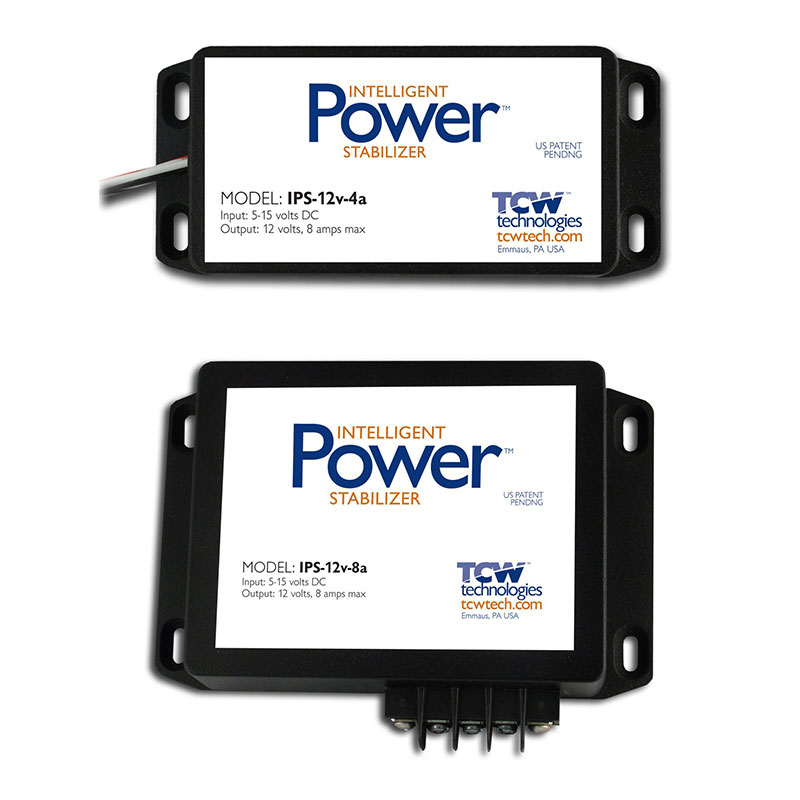

TCW Intelligent Power Stabilizer
FREE Shipping
Overview
|
Intelligent Power Stabilizer (IPS) is an electronic power converter that provides stable power to critical electrical equipment found in general aviation aircraft. Electronic equipment such as engine monitors, EFIS and GPS’s can be operational before and during engine starting. With this important feature, the IPS saves fuel and operating expenses by not having to run the engine during flight plan loading or clearance delivery. When used with aircraft engine monitors, it ensures the pilot can monitor critical engine operating parameters such as oil pressure during the engine starting process. The IPS is available in three different models and is suitable for use with equipment such as the Garmin GNS-430/530 series of GPS and the G900X and GU370/375 series avionic system. The patented technology in the Intelligent Power Stabilizer system ensures the connected electronic equipment is provided with a stabilized source of power even when the aircraft battery voltage drops significantly. This is particularly important during engine starting or alternator out conditions. IPS provides aircraft bus voltage surge and sag protection for the connected electrical equipment by actively clamping the regulated output voltage. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
| 12V / 4 Amp Model | 12V / 8 Amp Model | 24V / 5 Amp Model | |
|---|---|---|---|
| Input Voltage: | 5 – 15 volts DC | 5 – 15 volts DC | 10 – 30 volts DC |
| Output Voltage: | > 11.25 volts DC | > 11.25 volts DC | > 24.0 volts DC |
| Output Current: | 4 amp continuous | 8 amps continuous | 5 amps continuous, 10 amps peak |
| Converter: | True DC:DC converter with output over voltage, over current and over temperature protection | True DC:DC converter with output over voltage, over current and over temperature protection | True DC:DC converter with over voltage, over current and over temperature protection |
| Panel Warning Light: | LV warning light included | N/A | N/A |
| Surge Protection: | 16 volt active clamp, 1500 w 10/1000uS waveform | 16 volt active clamp, 1500 w 10/1000uS waveform | 32 volt active clamp, 1500 w 10/1000uS waveform |
| Wiring: | 4ft leads, Mil-spec wire | Insulated barrier strip, #6 screws | Insulated barrier strip, #6 screws |
| Enclosure: | 4.39” x 2.34” x 1.06” | 4.6” x 3.7” x 1.18” | Cast aluminum 4.6” x 3.7” x 1.18” |
| Weight: | 8 oz. | 14 oz. | 14 oz. |
| Temperature Range: | -25° C to 60° C | -25° C to 60° C | -25° C to 55° C |
Reviews
I have a Lancair 360 with an IO360 engine. Upgraded all the avionics to Garmin (G3x, etc.) On startup, my G3X and EIS would reboot and the screens would flicker when the hydraulic pump cycled (gear). I added this box and stopped all of those problems. Now on start I have the G3X, EIS, GNX375 GPS, and Intercom on and no power draw, rebooting, etc. This is a great box to stabilize power to expensive avionics! Very happy with this purchase. (Super easy to install)
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the supplier: No, it is not.
