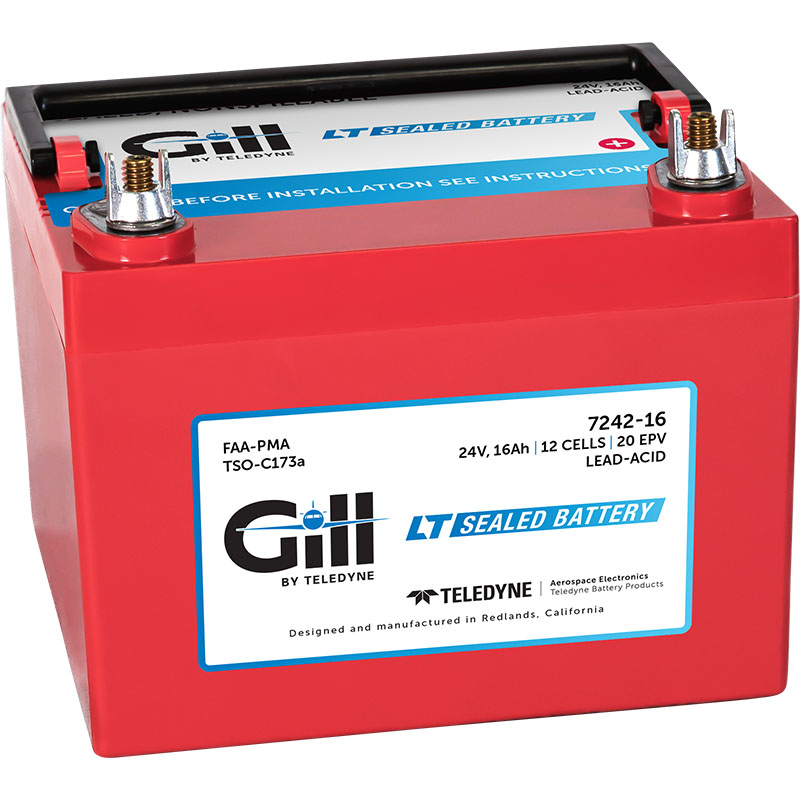

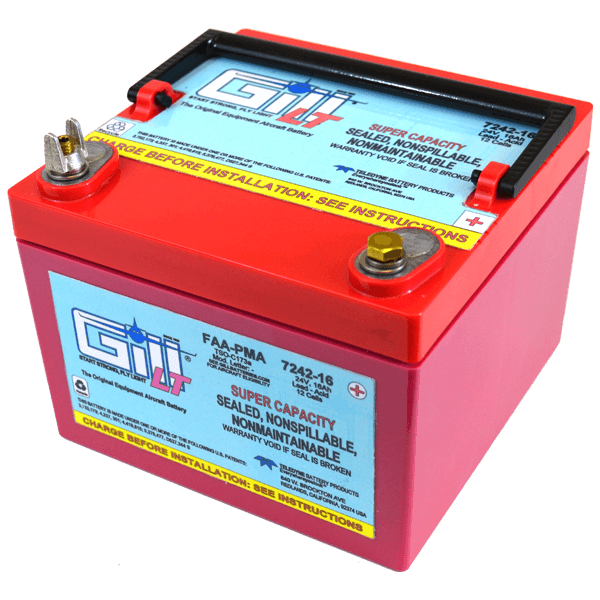

Gill 7242-16 LT Super Capacity Sealed Lead Acid Battery

$1025.00/Each
Quantity
Add to Wishlist
Part# 11-17223
MFR Model# 7242-16

Overview

  • The 7242-16 is a “sealed lead acid battery upgrade” to the popular Gill® G-242
  • Maintenance Free –Shipped Fully Charged and No Electrolyte or Water Required
  • Non-Spillable and Proven for Aerobatic Maneuvering
  • 2 Year Factory Warranty After Installation
  • Robust Starts, Higher Residual Power & Faster Re-Charge Times
  • First Capacity Check Not Required Until 18 Months/1800 Hours
  • Cost Competitive and Best Shelf Life in Lead Acid Chemistry
  • Advanced Valve Regulated Lead Acid (VRLA) Design
  • FAA/PMA Approved, TSO Authorized and Tested to DO-160E
  • LT® Series Batteries Are Fully Recyclable
  • LT® Series Batteries Ship Hazmat Exempt
Start strong with the Gill® 7242-16. See application chart to locate your aircraft and review your battery options.

MODEL VOLTS AMP HOURS 30 MINUTE CAPCITY BATTERY DIAGRAM
7242-16 24 16 25 Full Battery Specifications

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application Guide

Manufacturer Model
Cessna F152, FA152, F172N, FR172K, FR182Q, FR182, 152, A152, 172N, R172K, 177B, 177RG, 180K, 182Q,R182, A185F, A188B, T188C, T206H, TU206G, U206G, 207A, T207A, 210M, 210N, 210R, P210N,
T210M, T210N, T210R, 337H, FT337HP, P337H, T337H, T337H-SP
Beechcraft C23, C24R, F33C, V35B, A36, G36, D55, D55A, E55, E55A, 58TC, 58TCA, 76, 95-55, 95-A55, 95-B55, 95-B55A
Mooney M20J, M20K
Piper PA-31, PA-31-300, PA-31-325, PA-31-350, PA-36-285, PA-36-300
Socata Socata TB9, TB10, TB20, TB21, TB200

Specifications

  • Nominal Voltage: 24
  • Type: Sealed
  • Weight: 29.90
  • 1 Hr (C1): 16
  • 30 Min (2C): 25
  • Electrolyte: Not Needed
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

We ordered this to replace the same battery that was about 18 months old. The plane was hangered and the battery maintained with a battery maintainer. It has a 2 year warranty but our mechanic didn’t activate the warranty at install. I understand that is an issue but Gill didn’t even respond to our support email request through their website. Hopefully we will have more modern technology available for our next battery. We had a very cold snap this winter. Our biggest disappointment was the apparent no response from Gill.

James B Verified Purchase

Gill Super Capacity Battery 7242-16

March 8, 2024

Installed Gill 7242-16 in two year old 206 after OEM battery (unsealed Gill) failed. New battery started to show signs of weakness after ~12 months. At 16 months, battery totally failed - at least one bad cell. Switched to Concorde.

David H Verified Purchase

Gill Super Capacity Battery 7242-16

November 14, 2021

Fantastic battery. My engine never spun over as fast as it does now.

Jerry D
August 19, 2020

I prefer the sealed batteries, and Gill has a good one here!

Jim H
April 13, 2020
