Concorde RG-145-1 Aircraft Battery

$4408.00/Each
Quantity
Add to Wishlist
Part# 11-11695
MFR Model# RG-145-1

Overview

Concorde aerobatic RG® Series recombinant gas batteries are constructed with advanced sealed lead acid technology and unique features such as additional PolyGuard® separators around the plates to protect against shock and vibration, and larger than the industry standard intercell connections for optimal outrush and increased charge acceptance.

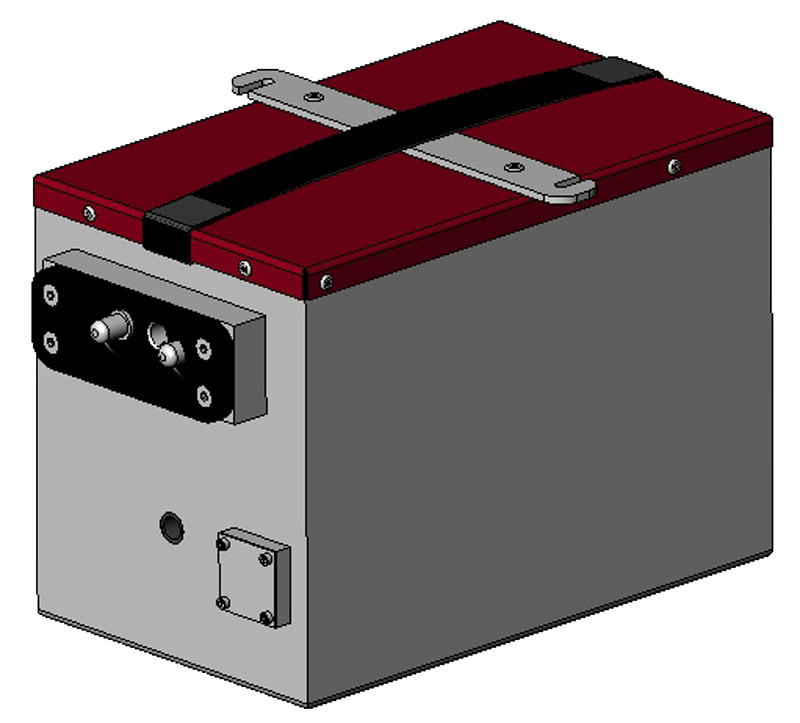

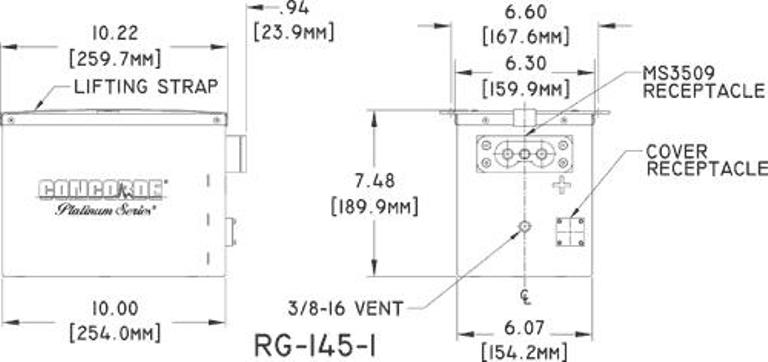

The battery is housed within an aluminum container and cover. A hold down bar is integrated into the cover with a lifting strap fitted on the cover. Heater receptacle mounting plate and vent hole are integrated into the front of the container. For a heated model, see RG-145-2.
  • Maintenance free
  • Constructed with non removable vent valves, no addition of electrolyte or water required
  • Complies with extended range requirements during emergency conditions

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Primary Aircraft Purpose: Turbine Starting Aircraft Battery
  • Voltage: 24v
  • Rated Capacity C1 = 1 hr. rate in ampere hours: 17.00
  • Max Weight: 42.50 lb / 19.7 kg
