Concorde RG-390E/Kh Aircraft Battery

$7083.00/Each
Quantity
Add to Wishlist
Part# 11-11717
MFR Model# RG-390E/KH

Overview

The RG-390E/KH is a Concorde® Platinum Series® Aircraft Battery. The Platinum Series® is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.

Concorde® recombinant gas (RG® Series) valve regulated lead acid (VRLA) heated batteries for engine starting and emergency / essential power applications are constructed with cutting edge Absorbed Glass Mat (AGM) technology. Concorde’s proprietary PolyGuard® Microporous Polyethylene Separator shields the positive plates against shorting, shock or vibration. No other manufacturer offers this dual layer insulation protection feature.
  • Superior starting power
  • Reliable essential power in the event of a generator failure
  • Low impedance design
  • Maintenance free
  • Constructed with non removable vent valves - no addition of electrolyte or water required
  • Internal AC Heater - 115 VAC
  • Internal DC Heater - 28.25 VDC
  • Aerobatic: Non spillable at any altitude or attitude
  • Factory tested to assure airworthiness
  • Shipped fully charged
  • RG® Series batteries ship HAZMAT EXEMPT

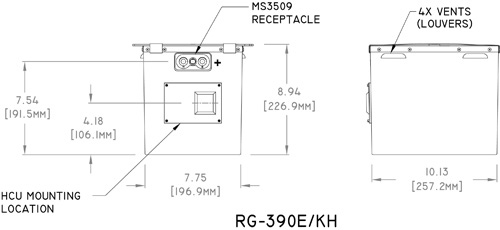

RG-390E/KH is a fire resistant powdered coated aluminum container and cover with integrated side louvered vents. Fabric lifting straps and hold down bar attached to cover.

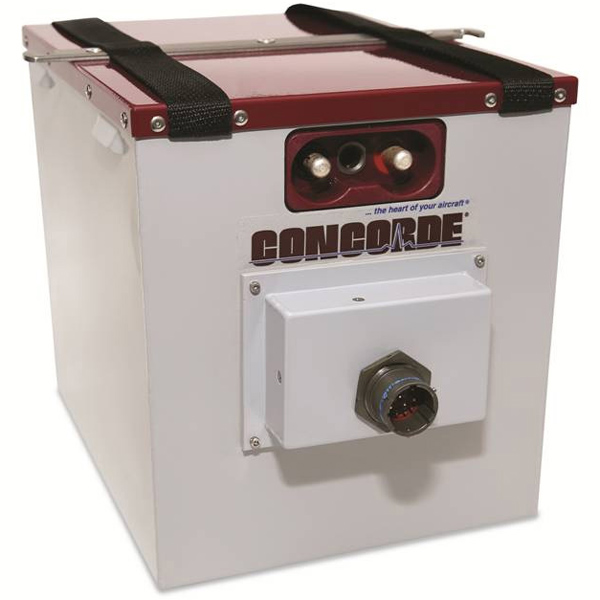

Concorde RG-390E/KH assembly as shown in the photo above consists of the RG-390E/KH battery and a Heater Control Unit (HCU). HCU types vary in style for use in multiple configurations.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Primary Aircraft Purpose: Turbine Starting Aircraft Battery
  • Voltage: 24v
  • Rated Capacity C1 = 1 hr. rate in ampere hours: 28.00
  • Max Weight: 62.00 lb / 28.1 kg
