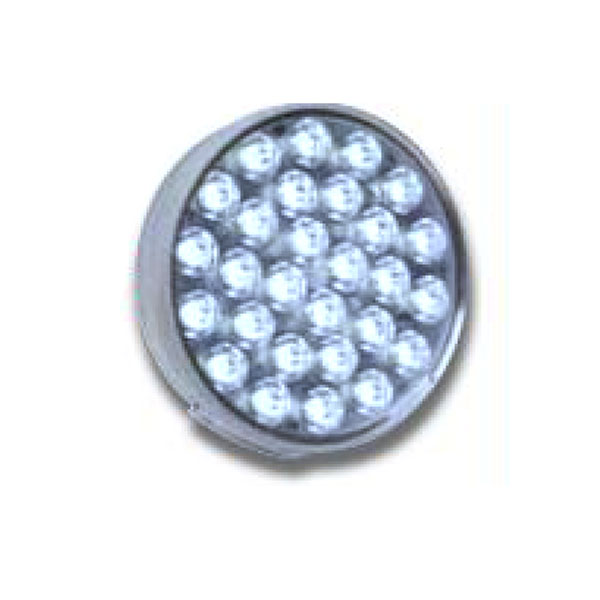

Whelen 90433 LED 6 Inch LED Landing Light - 28V

$1412.00/Each
Quantity
Add to Wishlist
Part# 11-16907
MFR Model# 01-0790433-00

Overview

90433 series is a 6 inch round, internal (non-weatherized) LED illumination product. It is styled after a PAR-46 lamp & housing internal combination. 90433 cannot 'fit' in place of a 6 inch light bulb, technology considerations require a stand-alone approach requiring a degree of customization to the aircraft. Unit ships with 10" of 18ga flying leads. 28 VDC Only.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Current: 2.00 amps
  • Weight: 1.7 lbs (771gm)
  • Dimensions: 5.75" (146mm) Diameter, 1.11" (28mm), Outer Ring Depth, 2.61" (66mm) Overall Depth
  • Reviews

    Q&A

    Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

    Q: What is the potential energy consumption of this lamp? And the consumption current?

    The current draw is 2 amps at 28 volt using 18 gauge wire. The potential draw can be more but it will be based on the wire gauge.
