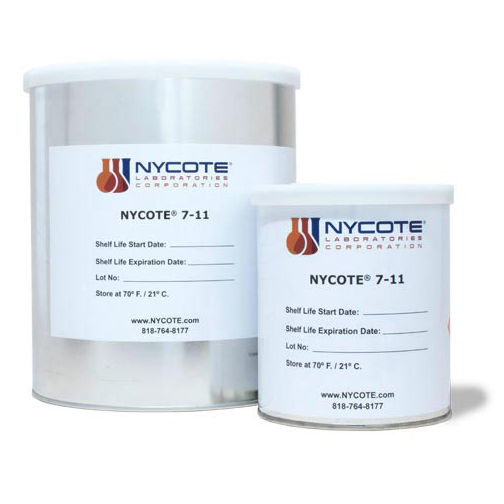

Nycote 7-11 Corrosion Protection

Select Tint:
ClearBlue
Quantity
Add to Wishlist

Overview

Apply NycoteŽ 7-11 to metal surfaces that need protection from corrosive elements. The liquid formula can be easily applied by painting, spraying or dipping areas that need protection from aircraft fuels, oil, lubricants, phosphate ester hydraulic fluids, salt spray and water.

NycoteŽ 7-11 also provides excellent high impact, abrasion resistance, flexibility and toughness at temperatures of -70°F to +300°F (-57°C to +149°C). NycoteŽ 7-11 has a six-month shelf life and the container can be resealed throughout. NSN: 8010-01-134-0415

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

Physical Properties Resin Film
Viscosity: @ 72şF Zahn #2 Cup 50-90 Seconds n/a
Solids Content (non-vol.) 19% n/a
Flash Point: C.O.C 70°F n/a
Pounds Per Gallon @ 78°F 7.4ą0.2 lb. n/a
Shelf Life @75°F Six Months n/a
Film Thickness, 1 Dipcoat n/a 0.5 mil
Coverage Per Gallon 300 sq. ft. n/a
Tack-Free Time, 50% RH @ 70°F n/a One Hour
Film Pencil Hardness n/a 1-H
Adhesion ASTM D4541-09 (pull-off stress) n/a 1200 p.s.i. at temperatures of -70°F to +300°F (-57°C to +149°C).
Abrasion Resistance - (500 Gr. #17 wheel 100 cycles) n/a 3.0 mgm

Applications

  • Carefully clean the surface of oils, grease and dust by using NycoteŽ Thinner Type I followed by NycleanTM for maximum NycoteŽ adhesion.
  • Shake container before using.
  • Apply NycoteŽ resin by brush, dip, fill and drain, or spraying techniques.
  • Allow one to two hours to achieve tack free surface before applying second coat.
  • When spraying we recommend using NycoteŽ Thinner Type II at a 25% to 50% volume ratio in order to reduce cobwebbing. Use low air pressure 10-20 p.s.i.
  • Allow wetted surface to air dry in dust and lint free area.
  • Follow cure timetable for full cure of film.
  • Cleanse equipment with NycoteŽ Thinner Type I.

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this NYCOTE 7-11 CORROSION PROTECTION type II class 1A?

Per the manufacturer: Yes it is.
