Fiberglass Insulation

From $31.50 to $36.75
Description PN Price Ft. Buy Ft.
Fiberglass Insulation Blanket 1 X 20
09-04520
$31.50
Quantity
Fiberglass Insulation Blanket 2 X 20
09-04521
$36.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

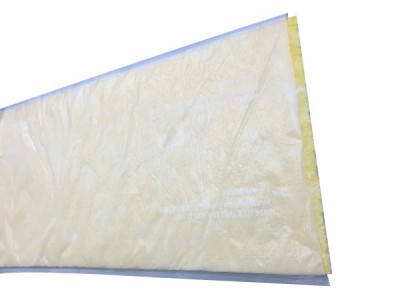

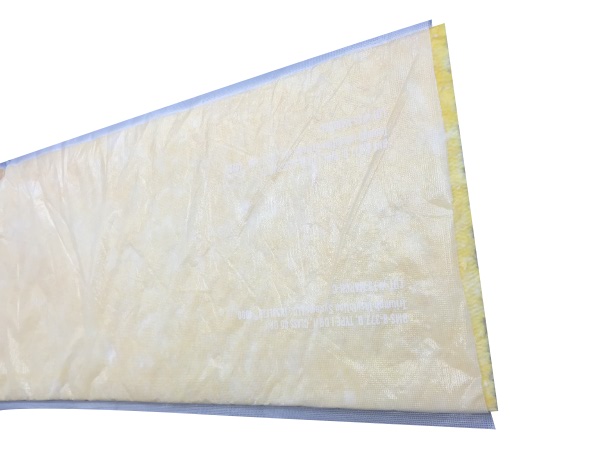

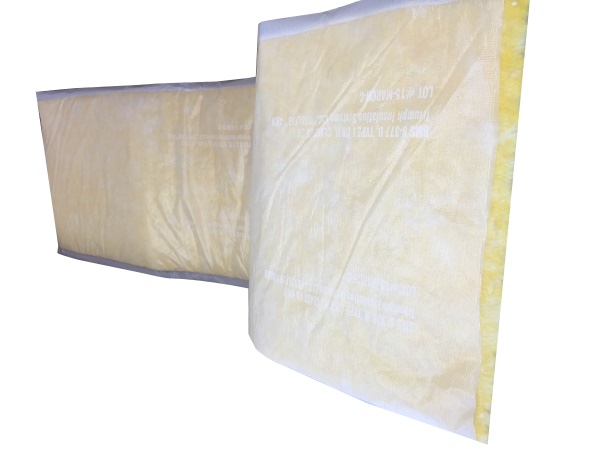

Ultra-light FAA compliant Thermal/Acoustic Insulation by the foot. The insulation consists of a covering film qualified to Boeing Material Spec. (BMS) BMS8-377 Ty I & II, Cl 1 and fiberglass qualified to BMS8-48 Ty III, Cl 2, Gr A.

These materials meet the FAR25.856(a) flammability regulations as required per the BMS and are available in 1 " or 2" thickness. The generic insulation can be cut to shape and edges sealed with BMS5-157 Ty 1, Cl 1 2 or 3, Gr A, Form 1 Tape.

Complete 50ft Rolls available

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Crazy expensive for what you get.

Darwyn D Verified Purchase

Fiberglass Insulation Blanket 1 X 20

May 2, 2024

expensive insulation

Marc P Verified Purchase

Fiberglass Insulation Blanket 1 X 20

November 22, 2022

Exclusive M Verified Purchase

Fiberglass Insulation Blanket 1 X 20

December 14, 2021

Does this material comply with FAR23.853(a)&(f) and be accompanied by signed FAA FORM8110-3 approving material?

Fan Y
February 19, 2020

David A
April 21, 2018

I thought this material was something more firm to fir in aircrafts

Morten M Verified Purchase

Fiberglass Insulation Blanket 2 X 20

February 28, 2023

Arclight A Verified Purchase

Fiberglass Insulation Blanket 2 X 20

May 20, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do these insulation blankets ship with tape that is required to seal the edges? "sealed with BMS5-157 Ty 1, Cl 1 2 or 3, Gr A, Form 1 Tape" <br> If not, what is the part number for the tape?

This insulation blanket does not come with any tape. The tape you would want to use with this blanket is P/N# 09-04566 or 09-04565.

Q: How wide is each sheet?

20 inch width.

Q: Can this be used on the firewall specifically on the side of the firewall closest to the engine?

It can be used on either side, most commonly firewall forward.

Q: What is the weight of this material per square yard?

.440001 lbs/sq yard

Q: Its 20 wide but how long is it? What size rolls?

Full rolls are 50 feet.

Q: Does this material have a “burn” certificate per AC 20-178 - Flammability Testing?

It meets the FAR25.856(a) flammability regulations as required per the BMS.

Q: Does the material come with a FORM 8110-3?

No, it does not. 8130-3 can be requested at time of checkout in the shopping cart (additional fees apply).
