Radiant Annunciator Alarm 100db

$40.00/Each
Quantity
Add to Wishlist
Part# 10-07740
MFR Model# RI-2024-18

Overview

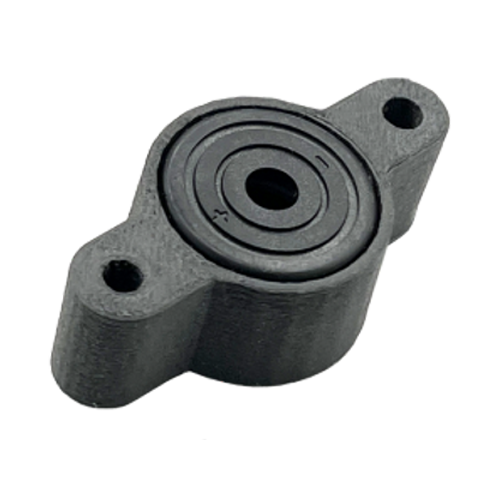

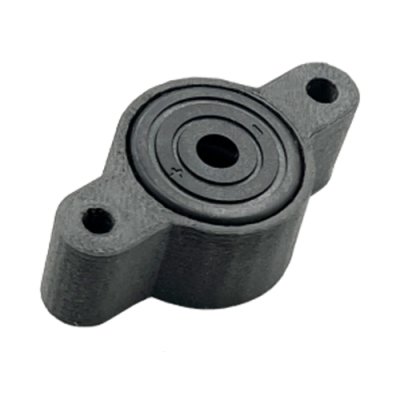

Radiant's new Annunciator is designed for general purpose use anywhere a loud aural alarm is needed. It produces a sound pressure level of 100+ dB at an effective 2.9 khz tone on 8 milliamps of current using any 12 volt supply.

This annunciator is useful for low fuel warnings and for many general purpose aircraft alarm applications, for instance, a gear warning.

Priced at $29.95, it is affordable and easy to use. Connect through any momentary limit switch or alarm, and it lets you know something's happening.

Note: This product can be paired wit the BINGO5

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Diameter of 1.10"
  • Height of 0.65"
  • Mounting Screws on 1.625" centers (included)
  • Nominal 12V power supply (will work with 3 to 20 volts)
  • Current draw of only 0.008 amps!
  • SPL of minimum 100 db @ 10cm
  • Temperature range of -20 to +70C (operating)
  • Weight of 10 grams (0.3 ounces)
  • Two solder lugs for connection to ground and switched power (alarm)
