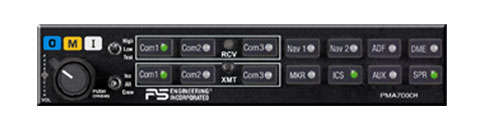

PS Engineering PMA7000H Audio Panel FAA TSO

$2099.00/Each
Quantity
Add to Wishlist
Part# 11-07001
MFR Model# 050-781-0300

Overview

The PMA 7000H is the latest addition to the PMA 7000 family, designed specifically for helicopter and other applications where large seat count and high end-low cost capabilities are required.

Having all of the capabilities of the popular PMA 7000B, the PMA 7000H adds 3 more passenger positions (total of 7 passengers with Pilot and Copilot seats), Cockpit Voice Recorder (CVR) output, and Push-To-Talk Intercom (PTT-ICS) function. (better known as Hot-Mic)

Along with the PTT-ICS capability, as with all PS Engineering's audio panels, the PMA 7000H comes standard with IntelliVox®, our patented automatic Voice-Operated-Relay (VOX) system.

Warbird operators will appreciate not only the ability to have HOT-MIC but the 6 pole microphone filter provides the best in microphone noise canceling.

Like the original PMA 7000M-S designed and sold in 1997, the PMA 7000H has a sophisticated telephone distribution system. Using On/Off Hook Switches that can be distributed through the aircraft, the pilot or copilot can make a private phone call, the passengers can make a party line phone call, pilot and passengers, copilot and passengers, or everyone can be on the telephone system. Making this telephone distribution the original Phone Booth™ and Party Line audio distribution system for General Aviation.

The PMA 7000H is the standard audio panel used in Bell Helicopter's new Business Class 429.

Remember, all of the capabilities that are in the PMA 7000B are incorporated in the PMA 7000H.

Note: Audio Recorder option is not available.

Specifications:

  • Height: 1.3 inches
  • Width: 6.25 inches
  • Depth: 6.8 inches
  • Weight: 1.5 pounds
  • Power requirements: 12 to 24 VDC
  • Warranty: 3 years
  • Unit is TSO'D

On all PS Engineering audio panels, a wiring harness must be done by PS Engineering or a PS Engineering dealer or the warranty is void.

For a quote on a PMA 7000H Wiring Harness please call 800-826-3160.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the TSO?

A TSO is a minimum performance standard for specified materials, parts, and appliances used on civil aircraft. When authorized to manufacture a material, part, or appliances to a TSO standard, this is referred to as TSO authorization. Receiving a TSO authorization is both design and production approval.

Receiving a TSO Authorization is not an approval to install and use the article in the aircraft. It means that the article meets the specific TSO and the applicant is authorized to manufacture it.
