Garmin Oil Pressure Sensor 150 PSIG

$1295.00/Each
Quantity
Add to Wishlist
Part# 11-20429
MFR Model# 494-30032-00

Overview

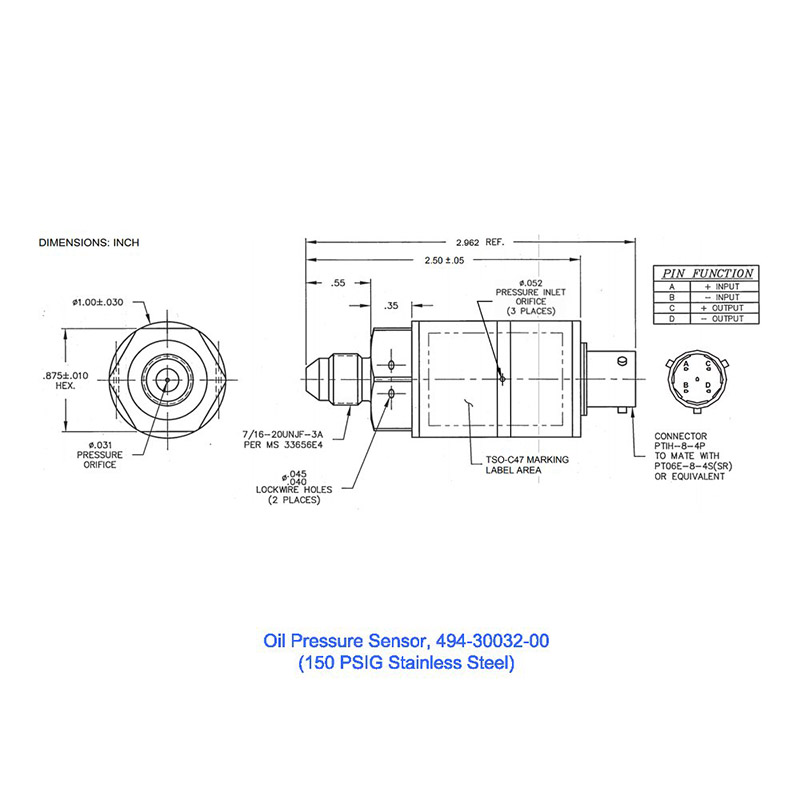

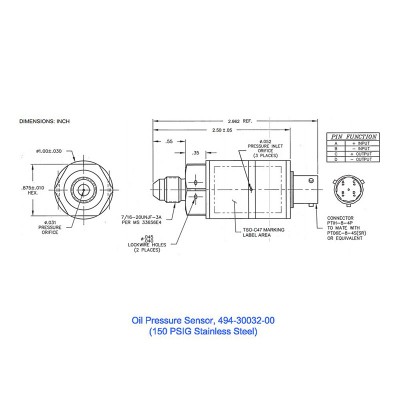

Garmin Oil Pressure Sensor 150 PSIG

Oil Pressure Transducer for Garmin EIS TXi (Stainless Steel)

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Function: Oil Pressure Transducer
  • Operating Temperature Range: -55 °C to +150 °C (-67 °F to +302 °F)
  • Gage Range: 0 to 150 psig
  • Accuracy: ± 3%
  • Resistance: Rin > 1000 Ω, Rout < 2000 Ω
  • Output Voltage Range: 0 to 50 mV
  • Material: Stainless Steel
  • Weight: 0.3 lb
  • Thread: 7/16-20UNJF-3A
  • Mount Type: Screw-in
  • Typical power consumption: 100 mW.
  • Mounting torque: ≤75 in-lb.
  • Operating altitude: up to 51,000 feet.
  • Proof Pressure: 300 psig.
  • Burst Pressure: 450 psig.
