Dual XHUD1000 Head Up Display

$549.99/Each
Add to cart for current price
Quantity
Add to Wishlist
Part# 11-18428
MFR Model# XHUD1000

Overview

The XHUD1000 Heads Up display enhances situational awarness for General Aviation.

3 Selectable Modes:

AHRS:

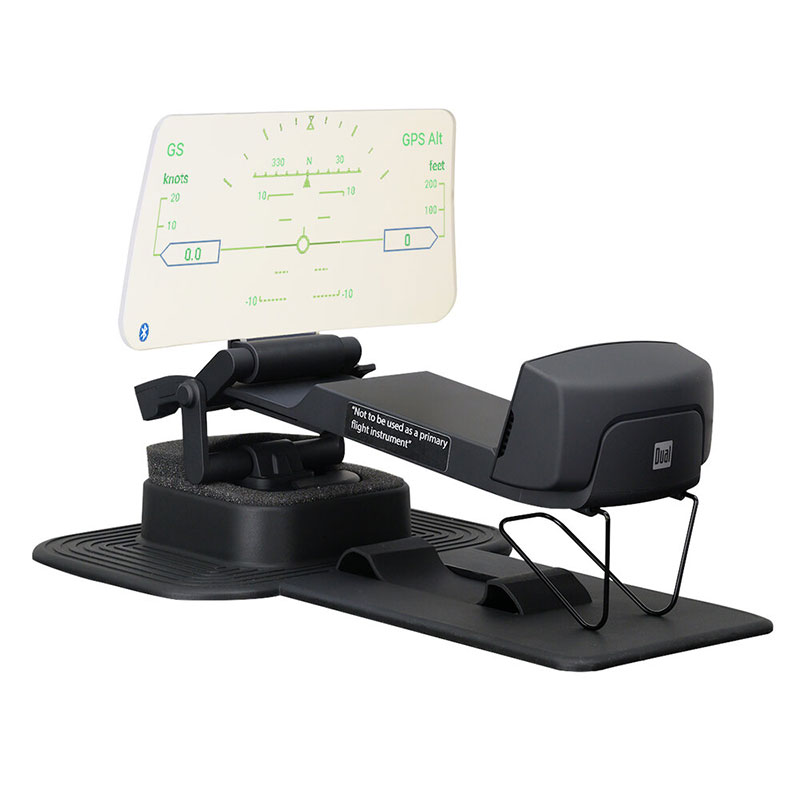

  • Displays altitude, airspeed, attitude, bank angle, and compass heading on a classic HUD graphic for monitoring fights.
Traffic:

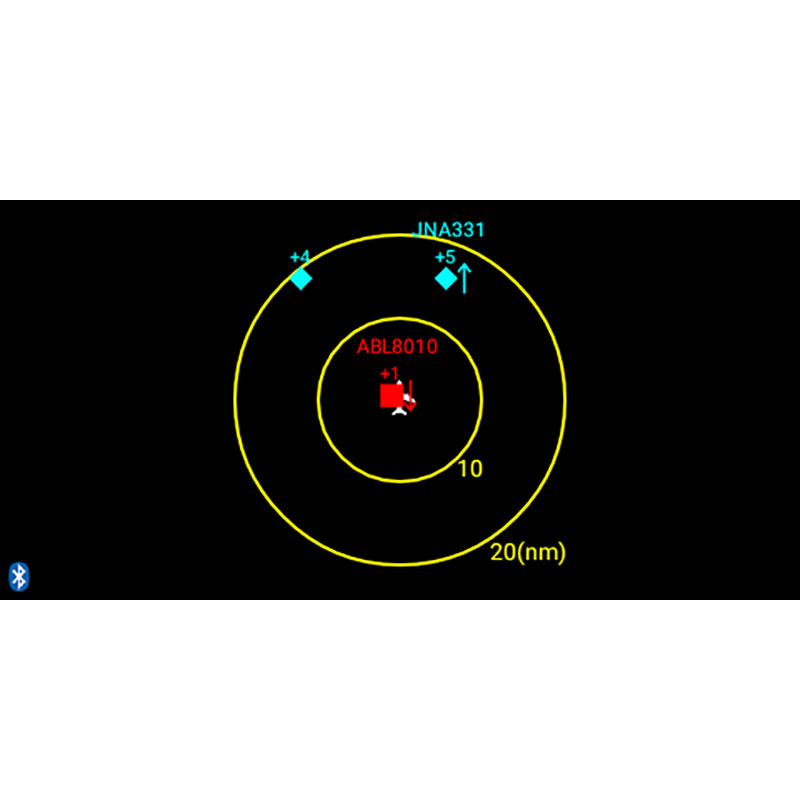

  • Displays ADS-B traffic on a radar style graphic with selectable range, using TCAS symbology.
Tablet Graphics:
  • Displays graphics from separate apps running on tablet or smartphone (e.g. AHRS, synthetic vision, maps)

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Enables pilots to view key flight data with their head up and eyes forward / Image Invert feature allows use of HUD in ceiling mount position
  • Wireless connectivity with portable receivers, panel avionics, tablets, & smartphones

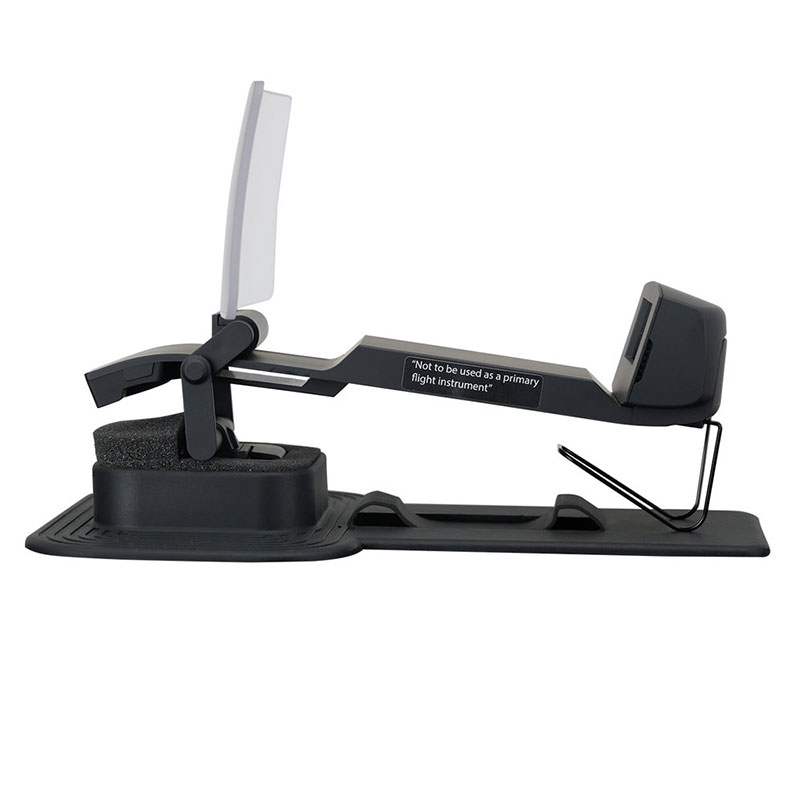

  • Compact & portable with flexible mounting to fit with most planes / Folding screen with adjustable distance & angle
  • Compatible with Dual XGPS190 & Stratus 3 for AHRS & Traffic modes, & XGPS170/170D for Traffic mode
  • Any brand of portable receiver will support Tablet Graphics mode / Non-slip anti-vibration holder & mounting bracket, for easy installation on most aircraft

Connections

With Dual XGPS ADS-B Receiver
  • XHUD1000 reads data directly from Dual receiver, and displays AHRS & Traffic using HUD’s built-in graphics
  • Most 3rd party EFB apps can be used, including Foreflight
  • Tablet Graphics mode available for iOS & Android mobile devices
  • WiFi connection not required, unless using Tablet Graphics mode


With Stratus 3 Receiver
  • XHUD1000 reads data directly from Stratus 3, and displays AHRS & Traffic using HUD’s built-in graphics
  • When XHUD1000 is connected to the Stratus 3, most 3rd party EFB apps can be used. However Foreflight cannot be used with Stratus 3 when HUD is connected, unless HUD is in Tablet Graphics mode
  • Tablet Graphics mode only available for iOS mobile devices


Dimensions

Benefits

  • Compatible with both iOS & Android devices
  • Compatible with Dual XGPS190 & Stratus 3 for AHRS & Traffic modes, & XGPS170/170D for Traffic mode
  • Any brand of portable receiver will support Tablet Graphics mode
  • Free Dual app for HUD control
  • Wireless connectivity via Bluetooth & WiFi
  • Non-slip anti-vibration holder & mounting bracket, for easy installation on most aircraft
  • Image Invert feature allows use of HUD in ceiling mount position
  • Folding screen with adjustable distance & angle
  • Screen optimized for both bright and dim conditions
  • Compact, lightweight, & portable
  • USB adapter and power cable

Reviews

I have purchased the XHUD1000 and XGPS 190 I am very impressed of what Dual has accomplished here. In combination with the XPS 190 you have a stand alone system displaying all the information you need to operate an airplane safely. In the mirror mode you can display the information from your ( iphone/android ) screen. I have tested the synvis screen from the Garmin pilot app and during the approach I displayed the approach charts nicely in front of me. Works as advertised. The app is straightforward. Great product !!

Rudi
January 23, 2021

Great for traffic and as a traditional HUD. I use mine with Foreflight and the screen is very grainy and it’s difficult to read words that are very legible on an iPad. Setup takes some work but once it’s up you are all set to go.

Gord T
February 13, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this unit work with the Garmin GDL 52 and/or Garmin Pilot? FltPlan Go App?

This is not compatible with the GDL52 or Garmin pilot, however it will work with other EFB apps such as Foreflight

Q: Is this compatible with Dynons AHRS and ADS-B?

Per the product description: Compatible with Dual XGPS190, Stratus 3 for AHRS & Traffic modes, XGPS170/170D for Traffic mode

Q: Can it read AHRS and ADSB data from Opensource Stratux Adan In receivers?

Yes, this is compatible with the Stratux unit.

Q: Can it get AHRS and ADSB data from foreflight? What information does it share with EFB apps??

Foreflight cannot be used with Stratus 3 when HUD is connected, unless HUD is in Tablet Graphics mode.

Q: Does XHUD1000 work with GRT Avionics SPORT EX EFIS ?

No it will not interface with that system.

Q: Is XHUD 1000 a stand alone device or it needs an AHRS to piggyback on to receive the info and display it?

It requires a receiver such as the XGPS190 p/n: 11-14334.

Q: Is the unit compatible with the Garmin Flightstream 210?

No, this is not compatible with that unit.

Q: Will the Flightstream 210 support the tablet graphics mode ?

Per Dual: We are unsure of this question since the 210 is just a gateway that pulls data to and from another device (e.g. Garmin Pilot or Foreflight)

Q: Is it possible to mirror images from the Garmin Pilot app (not using an external GPS / ADSB receiver)?

Per Dual: The XHUD1000 can display any iPad / iPhone image, without the need for a GPS/ADS-B receiver. So those apps, including the Garmin app, can be displayed on the HUD.

Q: Is a replacement glass screen available?

No, we do not sell replacement parts for these displays.
