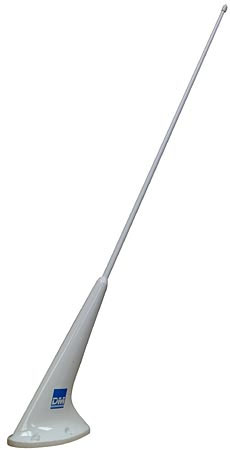

Dorne & Margolin C70-3 VHF Straight Rod Antenna

$1445.00/Each
Quantity
Add to Wishlist
Part# 11-02769
MFR Model# DM C70-3

Overview

MODEL DM C70-3

The DM C70 Series VHF Communication Antennas are designed for top or bottom installation on high-performance, single, twin and turbo engine fixed and rotary wing aircraft. These uniquely designed antennas offer mechanical strength and high-electrical efficiency to provide maximum reliability and full 360/720 channel transceiver operation. The lightweight profile is unobtrusive, resists icing and offers low drag.

The DM C70-3 is directly interchangeable with the following part numbers: C598501-0104, VF 10-210, CI 109, and CI 121.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • TSO: C37d,C38d
  • Alternate Part Numbers: C598501-0104, CI-109, CI-121, VF 10-210
  • Frequency Range 118-137 MHz

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this antenna also referred to as the Comant CI-270 VHF antenna?

The DM C70-3 is directly interchangeable with the following part numbers: C598501-0104, VF 10-210, CI-109, and CI-121.
