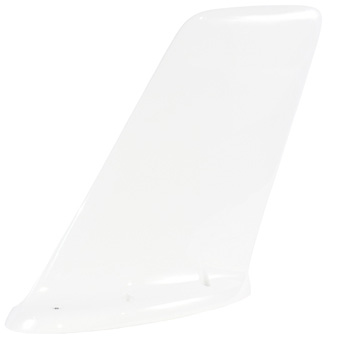

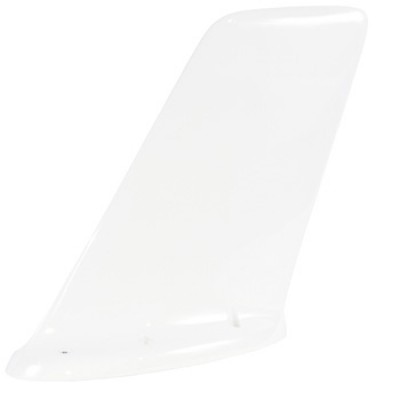

Comant VHF Comm - CI-108-1

Select Model:
Without Leading Edge ProtectionWith Leading Edge Protection
Quantity
Add to Wishlist

Overview

Designed for world-wide service where VHF communication is available over a wider band. Suitable for either top or bottom mounting. Solid polyurethane construction. White polyurethane finish is Skydrol and rain erosion resistant.

The CI 108-1 Series has been re-tested and upgraded to the RTCA DO-160D environmental requirements.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

MODEL CI 108-1 VHF BLADE ANTENNA
Electrical
Frequency

108-153 MHz

VSWR
2.5:1
Polarization
Vertical
Radiation Pattern
Omnidirectional
Impedance
50 Ohms
Power

25 Watts

Mechanical
Weight
2.5 lb Maximum
Height
12.0 in. Maximum
Material

High Density Polyurethane

Finish
Polyurehtane Enamel
Connector
BNC (Female)
Environmental
Temperature
-55ºC to + 85ºC
Altitude
50,000 ft.
Air Speed
600 Knots TAS @ 35,000 ft.
Federal Specifications
RTCA Environmental
DO-160
FAA TSO
C37d, C38d
RTCA MOPS
DO-186A
Gasket
C10810
Cork Neoprene - Standard
