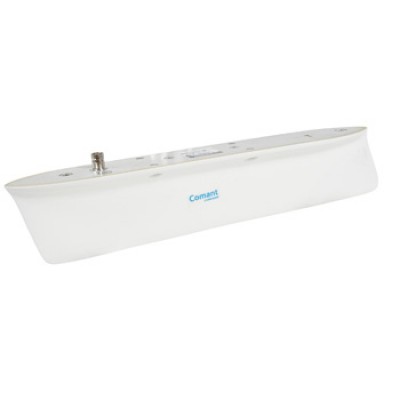

Frequency 75 MHz This Comant marker beacon is identical to the CI 118 except with a 4-hole through mount configuration. This model has been tested to the tough DO-160D environmental standards. Skydrol and rain erosion resistant. DC grounded to minimize accumulation of precipitation static. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
MODEL -CI 118-10 MARKER BEACON | |
Electical | |
Frequency | 75 MHz |
VSWR | 1.7:1 Maximum |
Polaraized | Parallel to the Mounting |
Radiation Pattern | Primarily Downward |
Impedance RF | 50Ohms |
Resistance DC | DC Grounded |
Power RF | Recieve Only |
Mechanical | |
Weight | 0.8 lbs. |
Height | 2.90 inches |
Construction | Molded Radome |
Finish | White Polyurethane Paint |
Connector | BNC (female) |
Environmental | |
Temperature | -55 to 85 C |
Altitude | 45,000 ft. |
Airspeed | 400 KTAS @ 25,000 ft. |
Federal Specifications | |
FAA TSO | C35d Class A |
RTCA Environmental | DO-138 |
Gasket | |
None |
