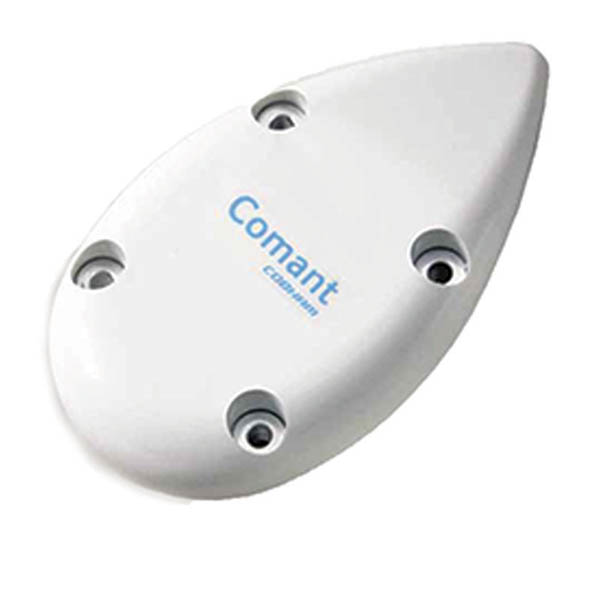

Comant Ci-419-200 GPS Waas Teardrop

0 Reviews 0 Answered Questions
$832.00/Each
Quantity
Add to Wishlist
Part# 11-19432
MFR Model# CI-419-200

Overview

Note:GPS portion not compatible with most GPS hand held receiver systems.
Comant’s four through hole teardrop style mount GPS WAAS antenna with TNC ports. GPS C190 certified class 3 LPV precision approaches. Designed to be used with 27 dB gain GPS panel mount systems. Suitable for top mounting for both light and heavy fixed wing single engine / multi-engine, and business jet aircraft.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • GPS Preamplifier Characteristics
  • Frequency: 1575.42 +/- 10.23 MHz
  • VSWR: 1.5:1 Max
  • Polarization: RHCP
  • Radiation Pattern: Hemispherical
  • Output Impedance: 50 Ohms
  • Gain @ 1575.42 MHz: 26.5 Min / 32.5 dB
  • DC Voltage: 4 to 24 Vdc
  • DC Current: 40mA Typical / 60mA Max
  • Noise Figure: 2.5 dB
  • G/T Ratio @ 5˚ Elevation: >/= 31.6dBK

  • Mechanical
  • Weight: 5.0 oz
  • Finish: Glossy White
  • Connector: TNC (Female)
  • Environmental
  • RTCA Env.: DO-160E
  • Federal Specifications
  • TSO C190

Documents

  • Light Fixed Wing Single Engine
  • Light Fixed Wing Multi-Engine
  • Heavy Fixed Wing Single Engine
  • Heavy Fixed Wing Multi-Engine
  • Business Jet
  • Always consult your installation shop for best application.
