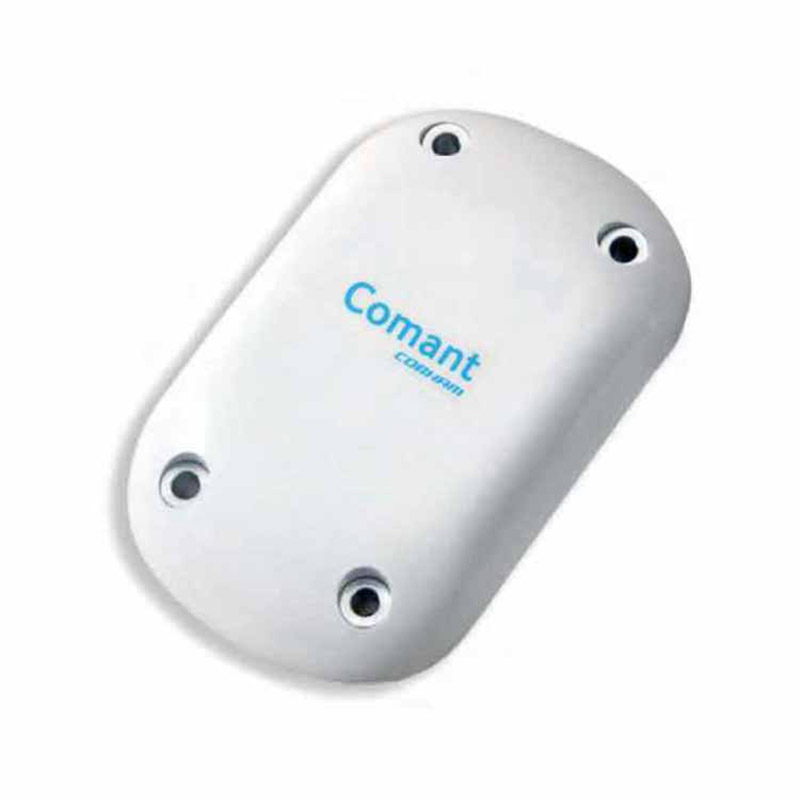

Comant Ci-401-490 Iridium Rectangle

$617.00/Each
Quantity
Add to Wishlist
Part# 11-19429
MFR Model# CI-401-490

Overview

Comant’s four through hole rectangle style mount (ARINC 743A footprint) Iridium antenna with TNC port. Iridium C159a certified designed for airborne Iridium based telephone, email, asset tracking or safety services. Suitable for top mounting for both light and heavy fixed wing single engine / multi-engine and business jet aircraft.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Specifications
  • Comant: CI 401-490
  • Single Channel Iridium™ SATCOM
  • RF Characteristics
  • Iridium TX / RX: 1616.0-1626.5 MHz
  • VSWR: 1.5:1 Max
  • Polarization: RHCP
  • Radiation Pattern: Hemispherical
  • Impedance RF: 50 Ohms
  • Power Handling - TX: 6.5 Watts Average
  • Lightning Protection: DC Grounded
  • Gain: +3 dBic @ Zenith

  • Mechanical
  • Weight: 6.2 Oz Max
  • Finish: Glossy White
  • Connector: TNC (Female)

  • Federal Specifications
  • FAA TSO: C159a
  • RTCA Environmental: DO-160G

Applications

  • Light Fixed Wing Single Engine
  • Light Fixed Wing Multi-Engine
  • Heavy Fixed Wing Single Engine
  • Heavy Fixed Wing Multi-Engine
  • Business Jets
  • Always consult your installation shop
  • for best application.
