Comant 211 Antenna

Select Version:
4 Hole / Ext Freq4 Hole / Ext Freq / Leading Edge6 Hole / Ext Freq
Quantity
Add to Wishlist

Overview

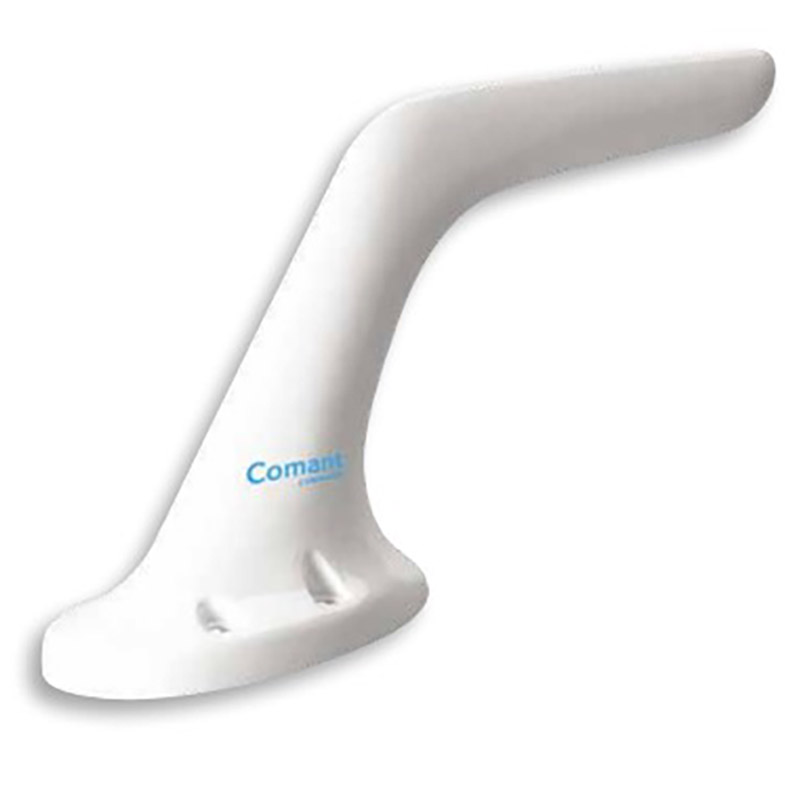

Comant’s four through hole and two internal hole mount bend blade style VHF communication antenna with BNC port. Features our most robust antenna in our VHF communication product line. Suitable for either top or bottom mounting with heavy fixed wing single engine / multi-engine, helicopter and business jet aircraft.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Electrical
  • Frequency: 118-137 MHz
  • VSWR: 2.9:1 Max
  • Polarization: Vertical
  • Radiation Pattern: Omnidirectional
  • Impedance RF: 50 Ohms
  • Power RF: 30 Watts C.W.

  • Mechanical
  • Weight: 1.6 lb
  • Height: 8.25 in
  • Material: High Density Polyurethane
  • Finish: Glossy White
  • Connector: BNC (female)

  • Environmental
  • Temperature: -55 to +85 Celsius
  • Altitude: 50,000 ft.

  • Federal Specifications
  • FAA TSO C37d, C38d
  • RTCA Environmental DO-160D

  • Gasket
  • C21104 Cork Neoprene

Documents

  • Heavy Fixed Wing Single
  • Heavy Fixed Wing Multi-Engine
  • Helicopter
  • Business Jets
  • Always consult your installation shop for best application.
