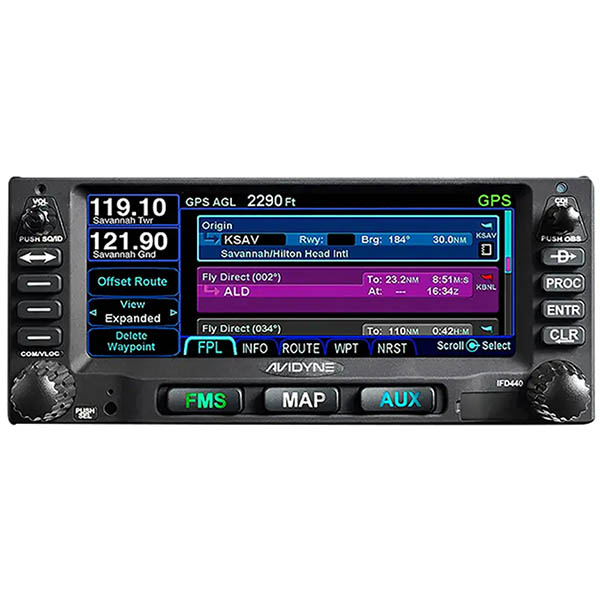

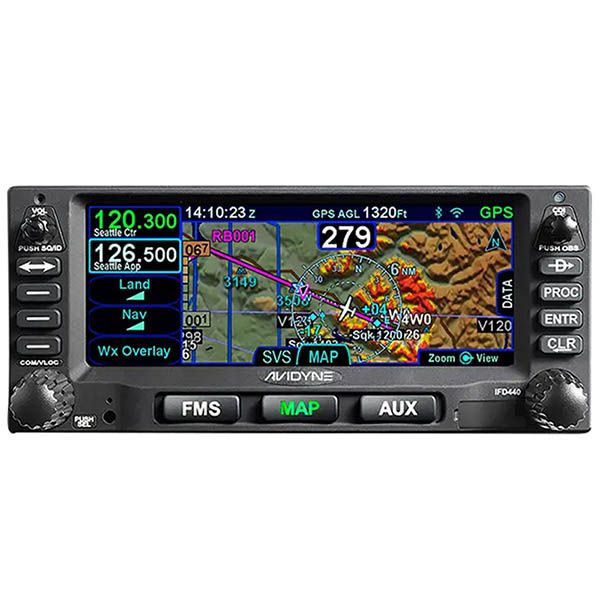

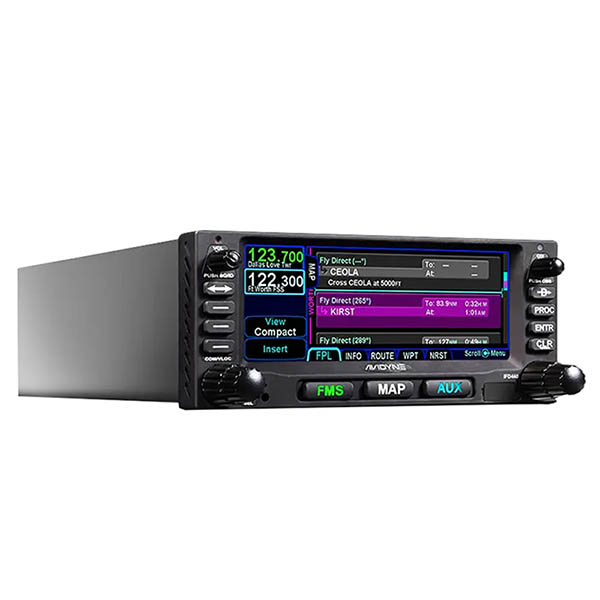

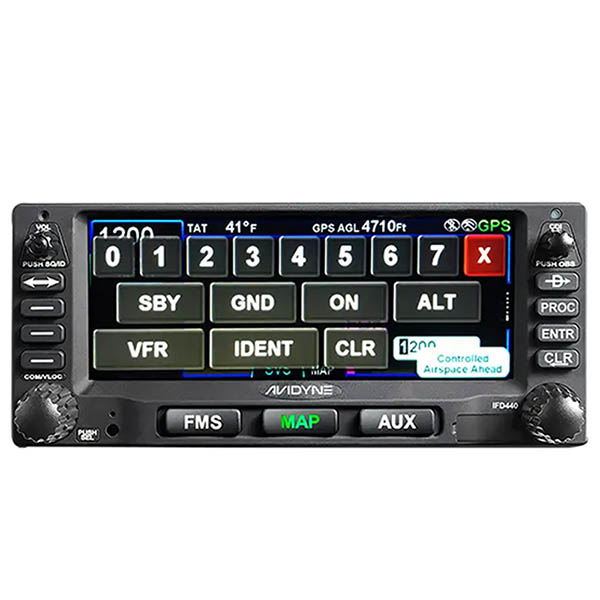

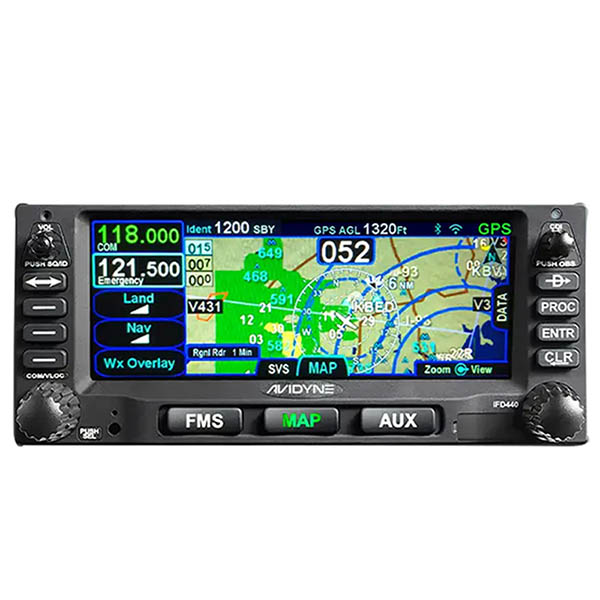

Avidyne IFD440 Navigator - Slide In Replacement for GNS Aircraft

0 Reviews 4 Answered Questions
Select Version
Slide-In UnitNew Install Unit with Tray
Quantity
Add to Wishlist

Overview

Avidyne’s IFD440 provides a plug-n-play touchscreen FMS/GPS/NAV/COM upgrade for GNS-equipped aircraft. Easy to use, easy to install, the IFD440 features all the power and capabilities of a next-generation panel mounted navigator, while utilizing the same tray and connectors as your GNS430W.

Compact and powerful, the IFD440 is an excellent choice for general aviation and helicopters with Avidyne's easy-to-use touchscreen interface and knobs and buttons when flying through turbulence. This next-generation panel-mounted navigator also makes flight planning and in-flight changes even easier because the included WiFi/Bluetooth® capabilities work seamlessly with your iPad. You’ll have big glass capabilities for a fraction of the cost.

Note: Installations with Garmin 345 units require an additional wire for functionality. Contact sales for current price and lead time.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

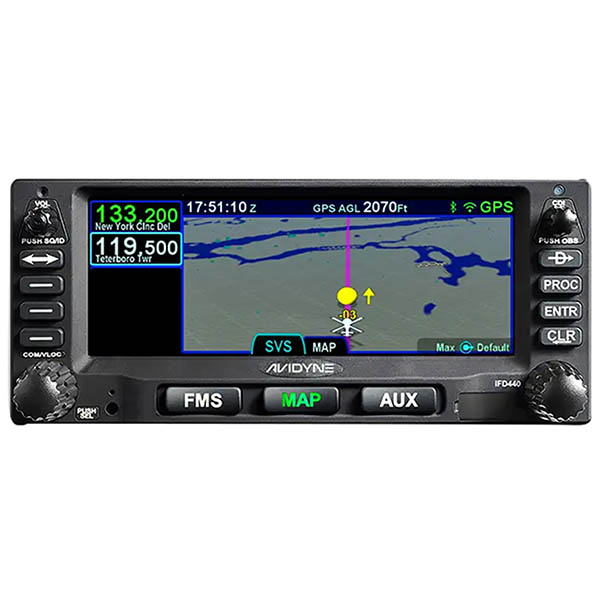

  • 3D exo-centric Synthetic Vision
  • Hybrid touch user interface
  • FMS Preview™ flight plan loading with real-time graphical depictions
  • Seamless integration to Avidyne’s IFD 100 iPad app
  • Powerful 10 Watt VHF COM with 8.33kHz spacing

Specifications

  • 4.8” Diagonal w/Touch Screen
  • Full VGA - 640 x 480 pixels
  • 65,535 colors
  • Ultrabright sunlight readable w/LED Backlighting
  • Width: 6.30” (16.0cm)
  • Height: 2.66“ (11.7cm)
  • Depth: 11.00“(27.5cm) behind panel including connector
  • IFD440 - 6.88 lb (2.34 kg)
  • 10 Watts nominal

Series Comparison

IFD 550 IFD 545 IFD 540 IFD 510 IFD 440 IFD 410
FMS/GPS • • • • • •
VHF NAV • • •
VHF COM • • •
3D SVS • • • • • •
ARS + DYNAMIC SVS • •
WiFi/BT/FLTA • • • • • •
Radar Optional Optional Optional Optional From 5-series From 5-series
Video Optional Optional Optional Optional N/A N./A

Documents

Compatibility

Satellite Datalink Weather Interface

  • Avidyne MLB700/WSI AV-300 Broadcast Datalink Receiver
  • GDL69/A XM Broadcast Datalink using Baron Wx Services and XM® Satellite Receiver

Electronic Approach Charts & Airport Diagrams (IFD5XX Only)

  • CMax™ – Jeppesen Electronic Airway Manual Charts (IFD540 only)
  • European VFR (Bottlang) Charts - optional

Charts, Nav Data, and other software updates are easily field loadable via USB port.

Lightning Interface

  • Avidyne TWX670 Tactical Lightning Detection
  • L3 WX-500 Stormscope® Weather Mapping Sensor

Wx Radar Systems

  • Bendix/King RDR2000

Traffic Interface

  • Avidyne SkyTrax600/605/610/615/620/A TAS/AXP322 TIS
  • Ryan 9900B/BX TAS
  • Honeywell KTA870/KMH880 TAS/IHAS/CAS66A TCAS I
  • L3 Skywatch 497 / HP TAS/ 791 TCAS I
  • Garmin GTS800/820 TAS/GTS850 TCAS I/ GTX330 TIS

ADS-B Interface

  • Avidyne SkyTrax605A/SkyTrax615A/ SkyTrax620A (Traffic)
  • Avidyne SkyTrax100B
  • Avidyne AXP340, AXP322
  • L3 NGT-9000
  • FreeFlight RANGR
  • Garmin GTX330ES, GTX335, GTX345

Terrain Awareness

  • Color-Contoured Terrain Base Map Built in
  • Americas Terrain & US Obstacle Data
  • International Terrain Data (optional)

406 ELT Interface

  • Aviation RS-232
  • NMEA 0183

Applicable TSOs

  • TSO-C34e, TSO-C36e, TSO-C40c, TSO-C44c, TSO-C110a, TSO-C112e, TSO-C113a, TSO-C118, TSO-C128a, TSO-C146d, TSO-C147, TSO-C157a, TSO-C165, TSO-C169a

EFIS

  • Garmin G5
  • Garmin GI-275

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this Avidyne IFD440 Navigator - Slide In Replacement for GNS Aircraft come with a WAAS antenna to upgrade from a non-WAAS gns 430?

This does not come with a GPS antenna.

Q: Is there an extra charge to enable WiFi and Bluetooth on the AviDyne IFD440?

No there is not an extra charge, this unit comes with Wifi and Bluetooth enabled.

Q: Is FLTA, Forward Looking Terrain Alerting, included or optional? Thanks.

FTLA is included on the IFD440

Q: Will this IFD 440 unit be a direct replacement for a Garmin GNC420 non WAAS?

No, This is unit is a direct replacement for a 430 WAAS.
