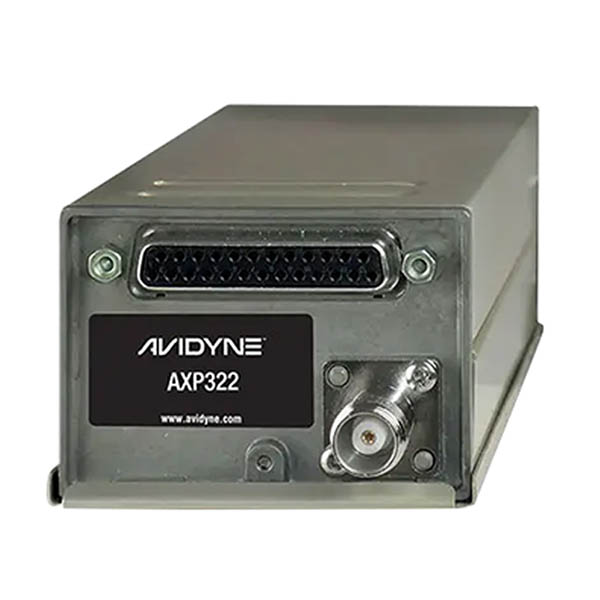

Avidyne Skytrax Axp322 Remote Mount Ads-b Transponder

Select Version
AXP322 ADS-B OutAXP322 ADS-B In/Out Bundle
Quantity
Add to Wishlist

Overview

When you equip your IFD-equipped aircraft with Avidyne’s AXP322 Remote-Mount Mode S Transponder, you’ll be flying with the knowledge that all ADS-B equipped aircraft will be aware of your ground track, ground speed and altitude.

The remote-mounted Avidyne AXP322 meets FAA requirements for the latest Version 2 1090 MHz Automatic Dependent Surveillance Broadcast (ADS-B) Extended Squitter when coupled to any Avidyne IFD.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Class 1 Mode S Level 2 Datalink Transponder
  • Remote-mounting saves space on the flight panel for additional avionics.
  • Full ADS-B surveillance capability to meet the upcoming mandates for flight above and below FL180
  • Supports 1090MHz Extended Squitter (ES)
  • Easily controlled using any of Avidyne’s IFD Series GPS/NAV/COM systems

Specifications

  • Width: 2.68” (68mm)
  • Height: 1.89” (48mm)
  • Depth: 6.3” (160mm)
  • 0.97 lbs (0.35 kg)
  • 9-33 V
  • Idle: 0.15 A Active: 0.34 A
  • 250 W at connector
  • -40°C to +70°C
  • No external cooling fan required
