Micro Vortex Generator Kits For Mooney

$1595.00/Each
Quantity
Add to Wishlist
Part# 05-04402

Overview

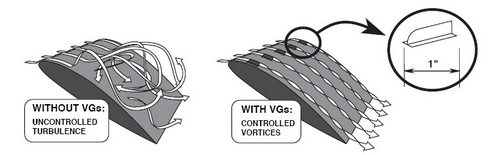

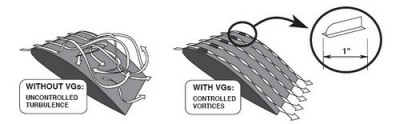

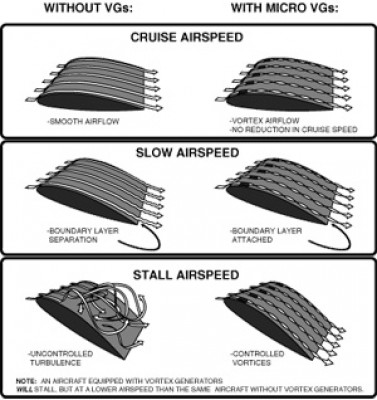

Micro Vortex Generators from Micro Aerodynamics, Inc. are available for a wide range of aircraft and can reduce stall speed, improve aileron response, improve cross wind control, and reduce landing and takeoff roll. The kits consist of vortex generators mounted on the wings, the horizontal stabilizer, and the vertical stabilizer. The generators are manufactured under FAA/PMA from 6063T6 aluminum and are curved to fit the contour of the wing. Included in the kits are installation tools, detailed drawings and instructions, templates for positioning VG's, spares,Loctite Depend adhesive and all the materials needed for the easy one-day installation.

When ordering, specify aircraft, serial number, N number, paint name and number (additional $200.00 to match), make and model, and any modifications to aircraft.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Applicable Aircraft

  • Mooney M20, M20A, M20B, M20C, M20D, M20E, M20F, M20G, M20J, M20K, M20L, M20M, M20R, M20S
