T-8301 1/2 Inch J-Channel 25 Foot Package

Select Color
BlackWhite
Quantity
Add to Wishlist

Overview

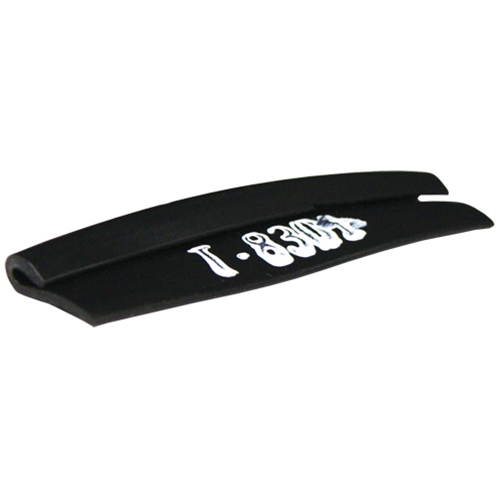

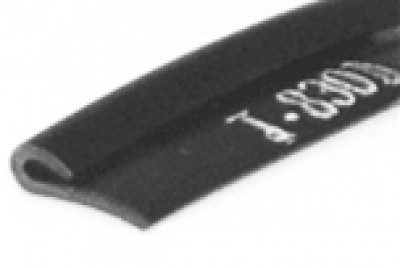

The T-8301 is vinyl U-Channel that is used as a trim seal in various applications through out the aircraft. It is manufactured from a vinyl material that meets the requirements of the FAR 25.853 B burn test. It is available in a Black or White color and comes in a 25Ft package.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • 1/16" opening
  • 1/2" x 3/16" Tall
  • Black or White
  • Meets the FAR 25.853B Burn Test

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

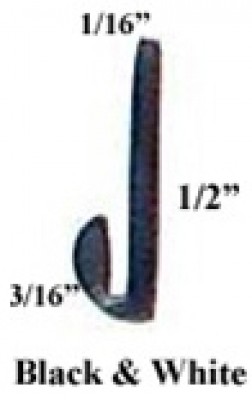

Q: Drawing indicates opening is 3/16th, specification says 1/16th. Please advise which is correct. Thanks.

The opening is 1/16th. Its a J channel so one side is 1/2 and the other shorter side is 3/16.
