Curtis Oil Drain Valve Adapter Assembly For Rotax

$114.75/Each
Part# 05-03539
MFR Model# CCA-2475

Overview

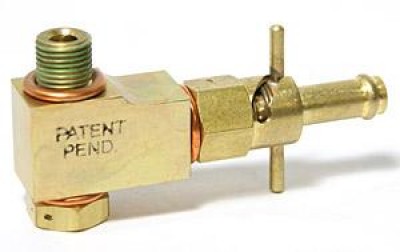

Rotax 90-Degree Adapter and Valve Assembly CCA-2475
Thread Size 12 mm - 1.75 mm, Aluminum Body, Brass Bolt
Brass Valve

For Experimental Use Only.

For: Rotax 912F2, 912F3, 912F4, 914F2, 914F3, 914F4


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this Curtis oil drain valve (part # 05-03539) fit a Rotax 912ULS?

Yes, this will work for the Rotax 912ULS.

Q: Will the curtis oil drain valve /part number 05-03539 fit a Rotax 914 UL

Yes, this will fit perfectly.

Q: Dimensions for 05-03539?

12mm (1.75") x 1.335 long.

Q: Will this Curtis oil drain valve (part # 05-03539) fit the new Rotax 912ULS or does it still need an adapter?

This will fit as shown in the photo.

Q: What is the torque setting of the Curtis Oil Drain Valve Adapter Assembly For Rotax?

80-80 inch lbs, Hand tight till it stops and 1/8 to 3/16 turn (coarse thread)
