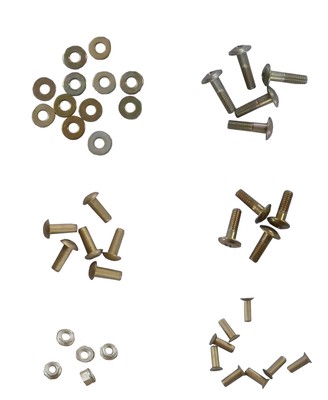

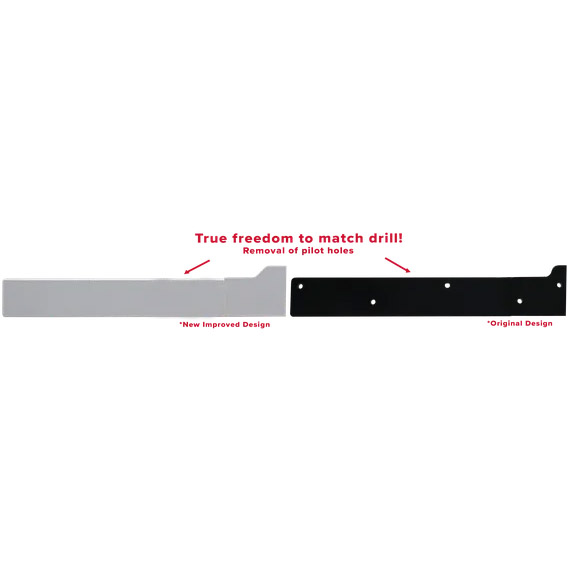

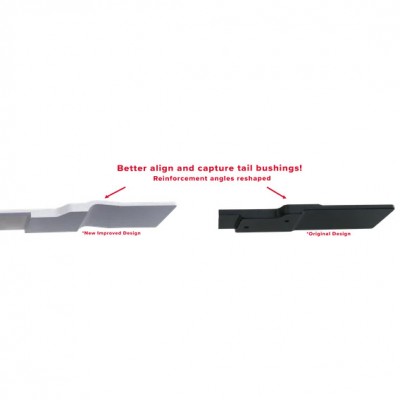

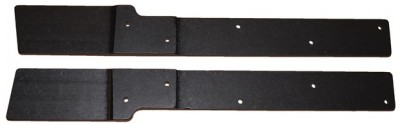

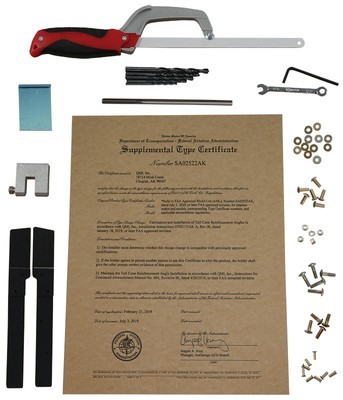

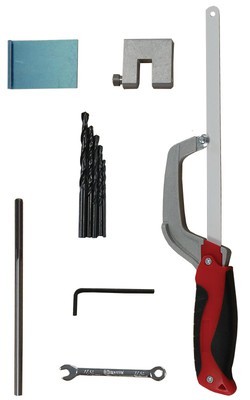

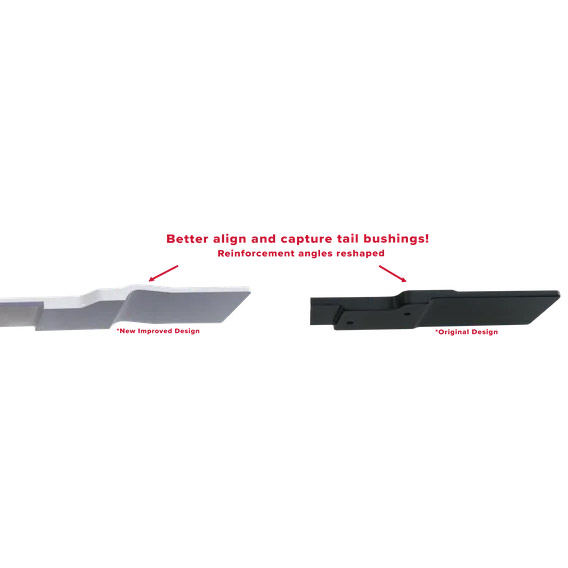

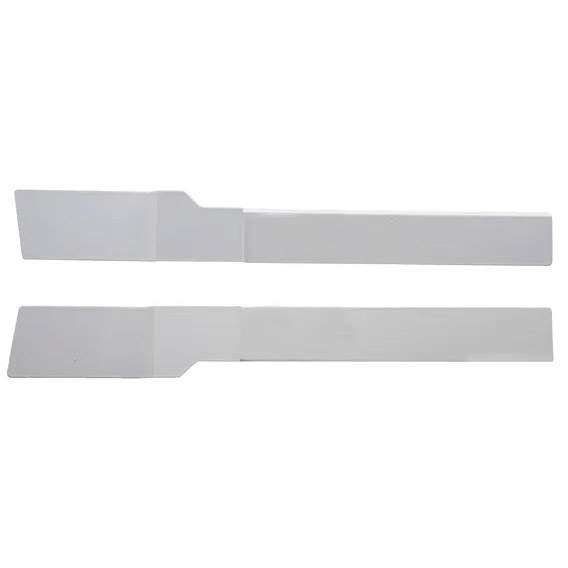

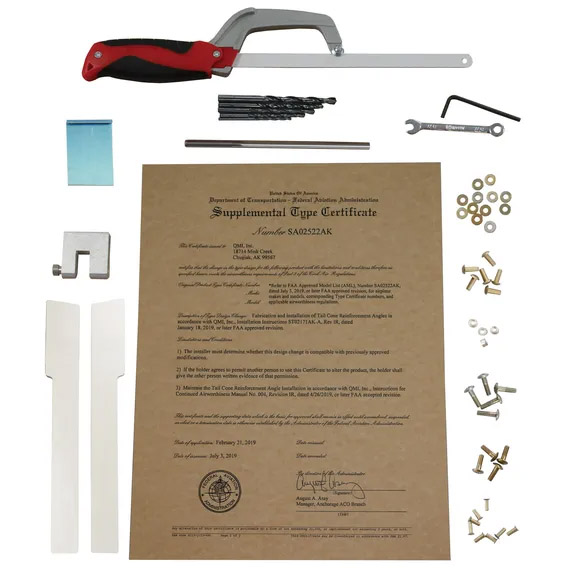

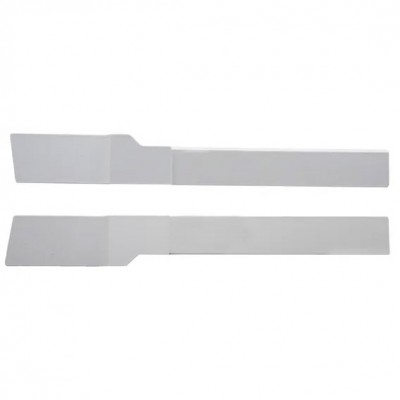

The Tail Cone Angle replacement kit addresses the repair of the tail cone reinforcement angle issue found in Cessna Owner Advisory: SEL-55-01 and is in AD2020-21-22. The Tail Cone Angle Kit will drastically reduce cost and extend the inspection time from 500 flight hours/5 years to 1500 flight hours/10 years. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Make | Series | Model | Beginning S/N | Ending S/N |
---|---|---|---|---|
Cessna | 180 | 180 | 30000 | 32661 |
Cessna | 180 | 180A | 32662 | 50355 |
Cessna | 180 | 180B | 50356 | 50661 |
Cessna | 180 | 180C | 50662 | 50911 |
Cessna | 180 | 180D | 18050912 | 18051063 |
Cessna | 180 | 180E | 18051064 | 18051183 |
Cessna | 180 | 180F | 18051184 | 18051312 |
Cessna | 180 | 180G | 18051313 | 18051445 |
Cessna | 180 | 180H | 18051446 | 18052284 |
Cessna | 180 | 180J | 18052285 | 18052384 |
Cessna | 180 | 180J | 18052385 | 18052770 |
Cessna | 180 | 180K | 18052771 | 18053203 |
Cessna | 182 | 182 | 33000 | 33842 |
Cessna | 182 | 182A | 33843 | 51556 |
Cessna | 182 | 182B | 51557 | 52358 |
Cessna | 182 | 182C | 52359 | 53007 |
Cessna | 182 | 182D | 18253008 | 18253598 |
Cessna | 185 | 185 | 185-0001 | 185-0237 |
Cessna | 185 | 185A | 185-0238 | 185-0512 |
Cessna | 185 | 185B | 185-0513 | 185-0653 |
Cessna | 185 | 185C | 185-0654 | 185-0776 |
Cessna | 185 | 185D | 185-0777 | 185-0967 |
Cessna | 185 | 185E | 185-0968 | 185-1149 |
Cessna | 185 | A185E | 18501600 | 18502090 |
Cessna | 185 | A185E | 185-0968 | 185-1599 |
Cessna | 185 | A185F | 18502091 | 18502310 |
Cessna | 185 | A185F | 18502311 | 18504448 |
