Custom Made Cable Assemblies

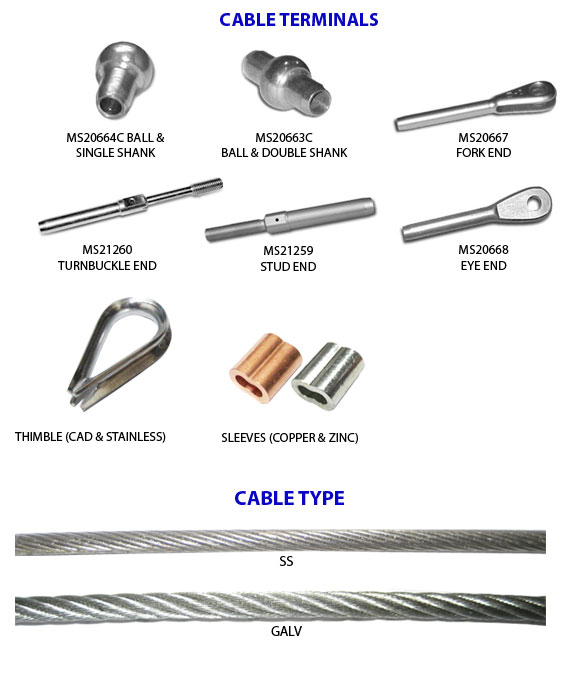

The terminals featured in this section must be installed with a rotary swaging tool, which is too costly for purchase by a homebuilder or small shop. We offer swaging service and custom-made cable assemblies in cable sizes of 1/16" to 5/32" diameter. Select the cable fittings of your choice, specify cable size, cable construction, stainless steel or galvanized cable and length. Measure length of cable assembly as shown in the illustration. We will furnish complete cable assembly ready for installation. A simple drawing of the assembly required is appreciated and will expedite shipment.

MEASURING LENGTH


Measure eye and fork terminals from center of pin holes. Measure ball fittings from center of ball. Measure stud terminals from end of terminal. Measure loop with thimble from surface of thimble.

SEE "TOOLS" SECTION FOR KEARNEY PORTABLE SWAGER. CUSTOM-MADE CABLE ASSEMBLIES ARE SPECIAL ORDER AND NON-RETURNABLE

NOTE: If your desired cable assembly is not configurable by using the above entry form, or if it is too complicated, please call us at 1-877-4-SPRUCE or email by clicking here and we will assist you with your order.

Cable size and material:



Length in inches:


(Enter fractions with decimals, ie 36.25 instead of 36-1/4, use period for decimal place, no commas)


Quantity:



Left End:



Right End:

Price each:
