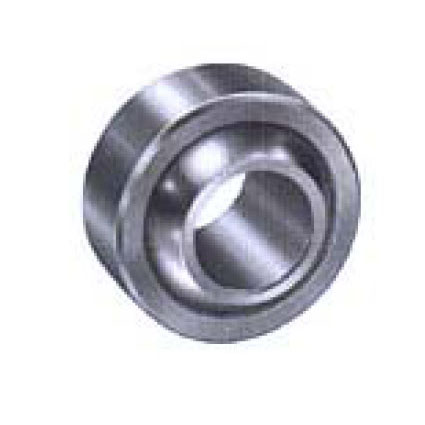

Plain Bearing MS14104-4

$15.85/Each
Quantity
Add to Wishlist
Part# MS14104-4
MFR Model# MS14104-4

Overview

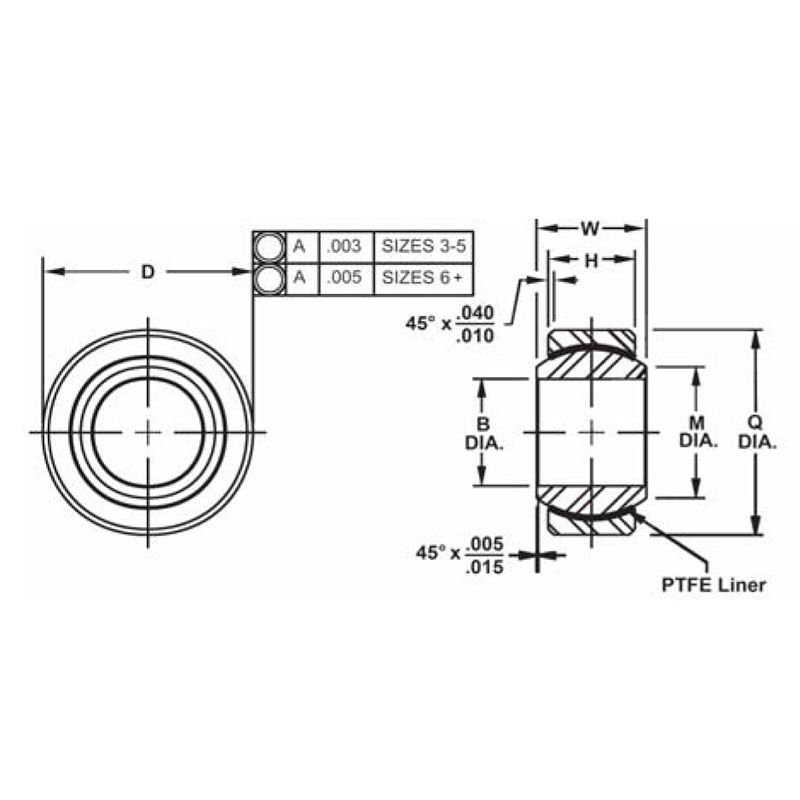

Bearing - Inner Diameter: 1/4" Outer Diameter: 21/32", Plain, Self-Lubricating, Self-Aligning, Low Speed, Narrow, Chamfered Outer Ring, -65°, F To 325°, F.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

Detail Characteristic
BORE DIAMETER 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM
HARDNESS RATING 55.0 ROCKWELL C MINIMUM INNER MEMBER AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER
HARDNESS RATING 23.0 ROCKWELL C MINIMUM OUTER RACE MEMBER AND 35.0 ROCKWELL C MAXIMUM OUTER RACE MEMBER
INNER MEMBER WIDTH 0.3410 INCHES MINIMUM AND 0.3430 INCHES MAXIMUM
OUTER MEMBER OUTSIDE DIAMETER 0.6557 INCHES MINIMUM AND 0.6562 INCHES MAXIMUM
OUTER MEMBER WIDTH 0.2450 INCHES MINIMUM AND 0.2550 INCHES MAXIMUM
MATERIAL PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER
MATERIAL STEEL COMP 440C INNER MEMBER
MATERIAL STEEL COMP 630 OUTER RACE MEMBER
STATIC RADIAL LOAD RATING 6040 POUNDS
STYLE DESIGNATOR WITH INSERT AND/OR LINER
