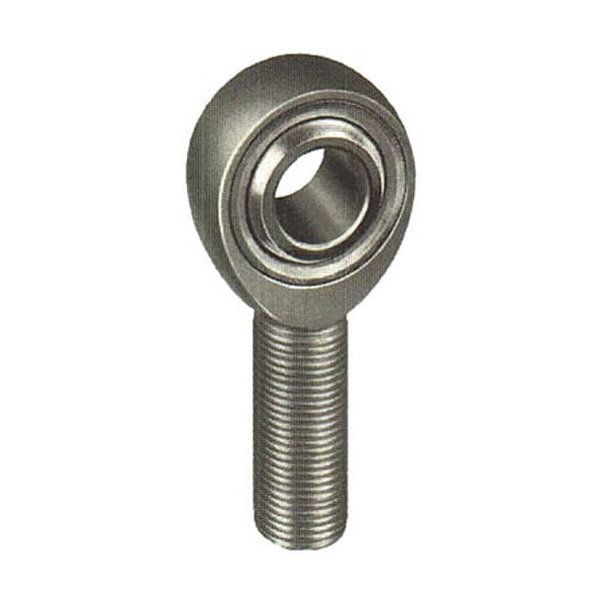

Aurora Bearing AM-3

$22.50/Each
Quantity
Add to Wishlist
Part# 04-04272
MFR Model# AM-3

Overview

Aurora Bearing AM-3

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Alloy steel body, heat-treated, protective coated for corrosion resistance
  • Alloy steel race, heat-treated, protective coated for corrosion resistance (carbon steel with PTFE liners)
  • Alloy steel ball, heat-treated, hard chrome-plated
  • Z suffix designates Zerk-type grease fitting
  • Blank suffix designates no grease fitting
  • Male right handed configuration

Specifications


Ball Material

Alloy Steel

Bore Diameter

0.1900 in

Grade

Precision

Harmonization Code

8483.30.8055

Head Diameter

0.6250 in

Head Width

0.2500 in

Housing Material

Alloy Steel

Lubrication Type

Non-Lubricated

Manufacturer Catalog

Aurora Bearing Company

Misalignment Angle

13 º

Overall Height

1.5625 in

Race Material

Steel

Radial Static Load   Capacity

2851 lbf

Series

AM

Shank Thread Size

10/32

Thread Direction

Right Hand

Thread Type

UNF-3A

Weight

0.028 lb

Product Type

Spherical Rod Ends
