Cessna 172 I / K / L (1968-72) M (73) Engine Baffle Kits

1 Review 0 Answered Questions
Select Metal Coat:
Bare CoatGray Powder Coat
Select Seal Color:
BlackBlueOrange
Quantity
Add to Wishlist

Overview

**Powder Coat: Only color is Hammertone (Gray) Powder Coating**

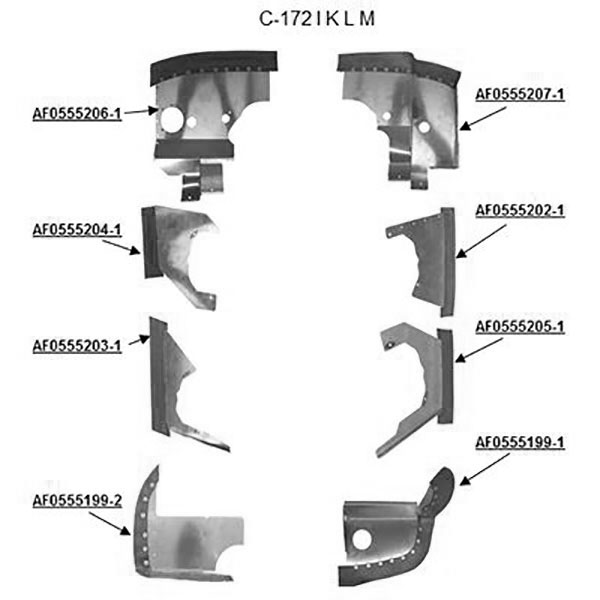

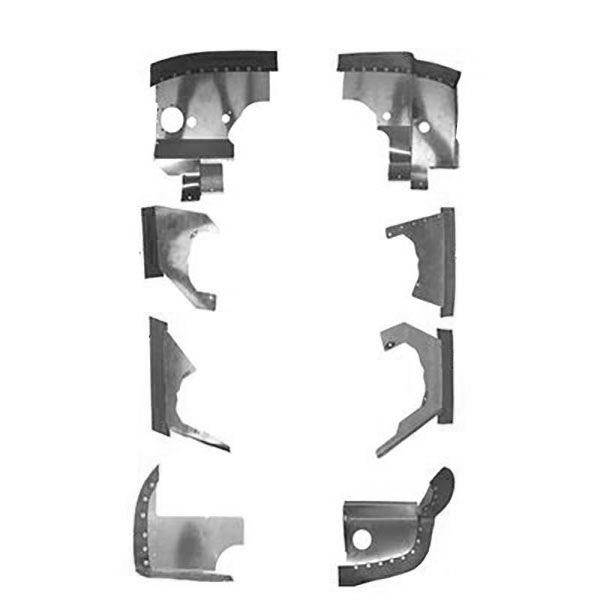

Complete Engine Baffle Components for 172 I / K / L (1968-72) M (73).

These baffles are FAA/PMA approved, have the silicone seals attached, and arrive ready to install.

Airforms is the premier manufacturer of FAA-PMA replacement baffle components.

Note:
  • If aftermarket components of differing dimensions have been installed, it is the installer's responsibility to adjust the baffles to fit. Components include: starters, alternators, exhaust, etc.
  • Mounting hardware is not included (nuts, bolts, screws, washers, retaining springs, and Tinnerman clips).

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Baffles are made of 6061-T6 aluminum with many improvements over the original baffling.
  • Improvements include: stainless steel brackets where needed, hard rivet construction, half inch backing plates on seals, and an improved fit to increase engine cooling.
  • All Airforms engine baffles are designed to replace the factory installations and are individually interchangeable.
  • The baffle seals are fiberglass reinforced, high temperature silicone: black is standard. Orange or blue are available for an extra charge.
  • We also sell seal kits if your metal baffle pieces are in good shape.

Eligibility

  • 1968-1973
  • C-172 SN 17256513 thru 17261898
  • F172 SN F17200805 thru F17201034
  • FAA-PMA Approved
  • Engine: Lycoming O-320-E2D
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Expensive but well worth it looks great very effective pre-installed baffle seal fits great saves a lot of time

James R Verified Purchase

Cessna 172 I,K,L,M 1968-73 Engine Baffle Kit, Powder Coat, Black Seals
September 29, 2021
