Wiebel Nose Landing Gear Oleo Kit For Aerostar Aircraft Models

$2452.00/Each
Quantity
Add to Wishlist
Part# 05-21712
MFR Model# M1010

Overview

Kit for the Aerostar Wiebel Nose Landing Gear.

This kit is not available in the US as Marsh Brothers Aviation is awaiting FAA Approval. This kit is available to Canadian customers.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Approved for installation in U.S. registered aircraft by Federal Aviation Administration Supplemental Type Certificate # SA03484NY.
  • Approved for installation in Canadian registered aircraft by Transport Canada Supplemental Type Certificate # SA14-43.
  • List of approved Aerostar models: 600, 601, 601P, 602P and 700P.

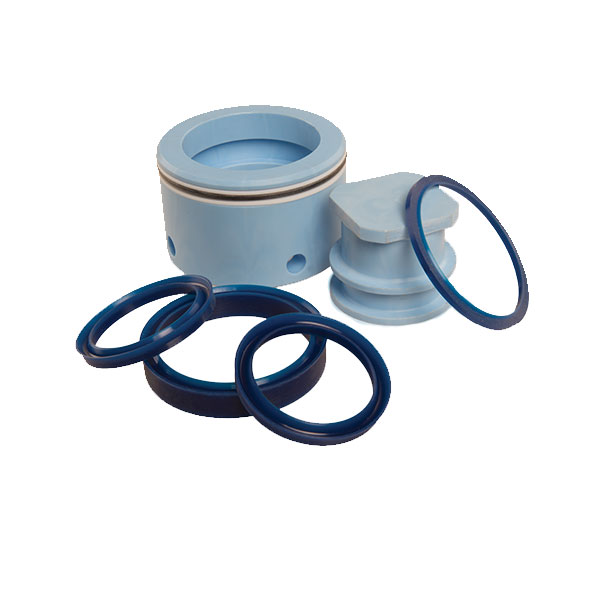

In The Box

MBA Part # Description Quantity OEM Cross Reference Part #
MBA10101 Gland 1 450512-001
MS28774-148 Back-up ring 2 MS28774-148
MS28775-148 O-ring 1 MS28775-148
MBA10122 Wiper Seal 1 MS28776-22
MBA10123 Gland Seal 1 MS28775-330 (qty.1), MS28782-33 (qty.2)
MBA10100 Floating Piston 1 450513-501
MBA10095 Floating Piston Seal 2 MS28775-325
