Rotax 912 Dual Throttle Control 144-Inch

$249.75/Each
Quantity
Add to Wishlist
Part# 15-05920
MFR Model# MCT100D144

Overview

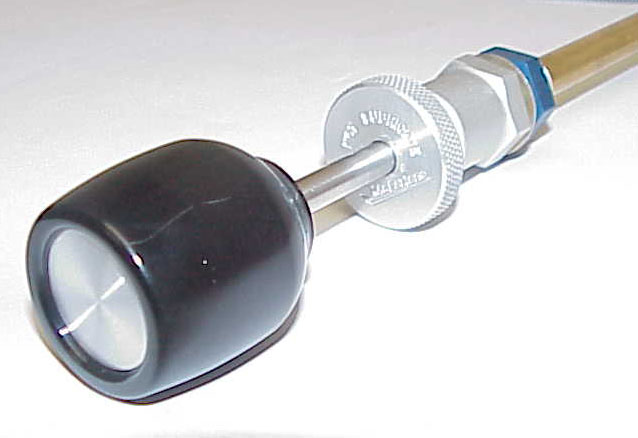

7780 Rotax Dual Throttle Control. The new panel mount throttle control for 912/914 series Rotax engines allows a neat, clean throttle installation without a clunky splitter box. It features proven super-smooth friction lock, all metal construction, a Teflon™ liner, and heavy duty 0.062 inch stainless steel inner wires. Behind the instrument panel, it splits into two conduits for easy and flexible routing. A quality throttle control equal to any general aviation aircraft.

  • Super-smooth friction lock stays put where you want it.
  • Easy one hand control and lock
  • All metal construction
  • Teflon™ lined for smooth, consistent control
  • Available in 12 foot lengths
  • Measured from panel fitting to end of conduit, wires extend 6 inches beyond conduit
  • Easily trimmed to length by installer
  • Longer controls available upon request
  • Manufactured to the same quality standards as FAA-PMA parts

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Panel Fitting: 1/2-20 UNF x 0.67 inch thread
  • Slip Fit Conduit Terminals: 2 each with 1/4-28 UNF x 1.00 inch thread
  • Conduit: 0.188 inch OD Teflon™ lined wound conduit
  • Inner Wire: Heavy duty 0.062 inch diameter, 1x7 stainless steel twisted wire per MIL-DTL-87161
  • Travel (stroke): 3.75 inch maximum
  • Design Work Loads: Push: Not Applicable (designed for pull loads only) / Pull: 10 lbs maximum
  • Typical Locking Force: 1 to 10 lbs (Locking force dependent on friction lock engagement)
  • Operating Temperature: -65 to 450 deg F
