Aurora Bearing Am-7

$26.85/Each
Quantity
Add to Wishlist
Part# 04-00241
MFR Model# AM-7

Overview

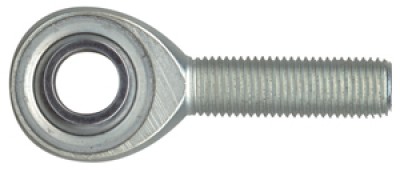

Aurora Bearing AM-7

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Thread type: left hand
  • Thread configuration: male
  • B-Ball Bore [inch]: .4375
  • W Ball Width [inch]: .562
  • H-Head Width [inch]: .473
  • A-Base to Center [inch]: 2.125
  • D-Head Diameter [inch]: 1.125
  • Ball Diameter [inch]: .812
  • C-Thread Length [inch]: 1.375
  • Thread Size: 7/16-20
  • Thread Class: UNF-3A
  • a- Misalignment Angle Clevis Mounted [degrees]: 14
  • Ultimate Radial Static Load Capacity [lbs.]: 10,285
  • Approximate Brg. Weight [lbs.]: .160
  • Options: Stud
  • Lubrication Options: Zerk Fitting, Flush Fitting or Ptfe Liner
