MEYERS HYDRAULICS AIRCRAFTS JACKS
|
 Meyer
Hydraulics have been recognized as the industry standard for aircraft
jacks for over 25 years. Professional mechanics rely on the AJS Jack Set
for applications requiring heavy-duty lifting capacity, smooth maneuverability,
and reliability. Refer to the Application Chart below for the components
required for your aircraft, and then order from the price list accordingly.
|
| |
| Aircraft |
Jacks |
Tailstand |
Legs |
Tubes
& Caps |
| Aero
Commander |
(2) A-6 |
(1) ATS |
(2) AJL |
(2) AT-4 |
Beech: Model 50, King
Air,
Queen
Air |
(2) A-6
(1) A-5 |
---
--- |
---
--- |
---
(1) AT-3 |
| Beech: Bonanza, Debonair, Travelaire, Baron |
(2) A-5 |
(1) ATS |
--- |
--- |
| Mooney |
(2) A-5 |
(1) ATS |
--- |
--- |
| Piper: All except Navajo & Aerostar |
(2) A-5 |
(1) ATS |
--- |
--- |
| Piper Navajo & Aerostar |
(2) A-6 |
(1) ATS |
--- |
--- |
| Cessna: Cardinal RG |
(2) A-6 |
(1) ATS |
--- |
(2) AT-4
(2) ATC-8 |
Cessna: All high wings RGs
except Cardinal |
(2) A-6 |
(1) ATS |
(2) AJL |
(2) AT-4
(2) ATC-8 |
| Cessna: All 300 & 400 Series |
(2) A-5 |
--- |
--- |
(2) AT-28
(3) ATC-4 |
| Navion |
(2) A-5 |
(1) ATS |
--- |
(2) AT-28 |
| AJS
|
Height Ranges |
| A-5 w/AT-1* |
22"/36"
|
| A-5 w/AT-28 |
28"/42"
|
| A-5 w/AT-3 |
34"/58"
|
| A-6 w/AT-2* |
34"/58"
|
| A-6 w/AT-4 |
54"/78"
|
|
(*)
ATC Caps will not work on these
tubes.
|
|
| AJS
|
Height Ranges |
| A-6 w/AJL |
Legs+10"
|
| ATC-4 Cap |
+1 to 4"
|
| ATC-8 Cap |
+1 tp 8"
|
| ATS Tailstand |
30"/51" |
|
(*) ATC Caps will not work on these tubes.
|
|

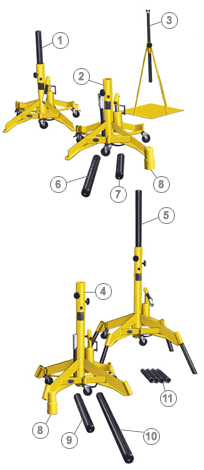

AJS2 DELUXE JACK SET
Includes one complete AJS Jack system (describes above) plus one
A-5 Jack with AT-1 tube, one AT-28 tube, and one ATC-4 cap. A very
popular Jack system for general aviation maintenance.
P/N 12-01378 |
|
|
| Description |
Part No. |
Price |
Buy |

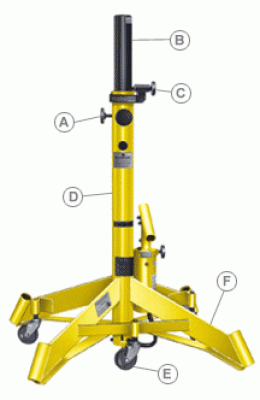

| MEYER A-5 JACK W/ AT-1 | 12-21405 | $507.00 |
|
| A-6 MEYERS JACK WITH AT-2 TUBE | 12-21410 | $641.00 |
|
| MEYER JACK TAIL STAND # ATS | 12-21415 | $176.95 |
|
| MEYER JACK SET 4 LEGS # AJL | 12-21435 | $85.75 |
|
| MEYER JACK TUBES # AT-1 | 12-21440 | $48.75 |
|
| MEYER JACK TUBES # AT-2 | 12-21445 | $57.50 |
|
| MEYER JACK TUBES # AT-3 | 12-21455 | $63.25 |
|
| MEYER JACK TUBES # AT-4 | 12-21460 | $69.50 |
|
| MEYER JACK TUBES # AT-28 | 12-21465 | $51.50 |
|
| MEYER JACK CAPS # ATC-4 | 12-21470 | $54.75 |
|
| MEYER JACK CAPS ATC-8 | 12-21475 | $67.90 |
|
| MEYER AJS2 DELUXE SYSTEM | 12-01378 | $2889.00 |
|
|
|
