LANG TAILWHEELS
|
 |
The only tailwheel to meet
the exacting requirements
of the Christen Eagles
P/N D-501A $629.00
|

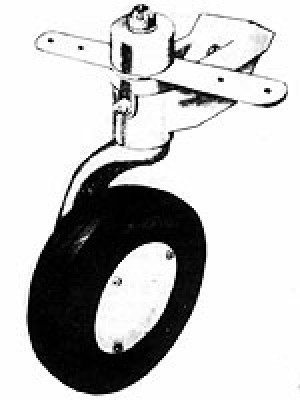

The Lang Model
D-501-A Tailwheel is full swivel, fully auto- matic and steerable.
It's impossible to throw the Lang tail- wheel into full swivel
unintentionally regardless of rough field conditions or cross
winds. This tailwheel will not lock in any position except steerable,
but releases easily when plane is pushed sideways or backwards
by hand or when maneuvering plane on ground using brakes.
The Lang tailwheel fits both 1-1/4" and 1-1/2" leaf
springs. Drop forged, heat-treated 4130 chrome moly steel fork
of single arm type. A cast aluminum wheel is grease packed for
100 hrs service. The 6x2.00 solid rubber tire has interior wire
reinforcement for added strength. Manufactured by ACS Products
Co. under FAA-PMA. All replacement parts available. The Lang
tailwheel is FAA-approved for installa- tion on many light aircraft
including Aeronca 7AC, Piper J-3 and PA-12, Cessna 140, Luscombe
and Taylorcraft. Comparable to Scott Model 2000. Wt. 6 Lbs. |
|
OEM & DISTRIBUTOR PRICING
AVAILABLE |
 |
1-Castellated Nut
2-Washer
3-Driving Cap
4-Wheel Arm
5-Plunger Spring
6-Plunger Pin
7-Arm Driving Pin
8-Driving Washer
9-Attaching Bracket Spacer
10-Attaching Bracket
11-Powder Metal Washer
12-Wheel Hub
13-Tire; 6x2
14-Wheel Bolt; Wheel Nut
15A-Bearing Cup
15B-Bearing Cone
16-Wheel Hub Cap; Felt Washer
17-(Wheel) Retaining Nut
18-Thrust Washer
19-Kloser Spacer
20-Garlock Seal
21-Axle & Arm
22-Torrington Bearing
23-Grease Fitting
24-Cam Locating Pin
25-Cam Washer
26-Driving Washer Spacer |
| Ref
No. |
Lang No. &
Description |
Qty |
Part
No. |
Price |
Buy |
| 1&2 |
A-501, A521 |
1 |
06-13601 |
$5.50 |
|
| 3&7 |
A503, A507 |
1 |
06-13637 |
$15.50 |
|
| 4 |
A-504 |
1 |
06-13604 |
$16.00 |
|
| 5&6 |
A-505, A506 |
1 |
06-13656 |
$3.75 |
|
| 8 |
A-509 |
1 |
06-13608 |
$5.90 |
|
| 9 |
A-512, A560-1,
A560-2 |
1 |
06-13609 |
$7.95 |
|
| 10 |
C-501 |
1 |
06-13610 |
$53.25 |
|
| 11 |
A-516 |
1 |
06-13611 |
$6.00 |
|
| 12 |
A-544, A545 |
2 |
06-13800 |
$119.95 |
|
| 13 |
A-590 |
1 |
06-15800 |
$63.85 |
|
| 14 |
A-548, A549 |
3 |
06-13614 |
$12.50 |
|
| 15A |
A-518 |
2 |
13287 |
$14.75 |
|
| 15B |
A-519 |
2 |
13286 |
$27.60 |
|
| 16 |
A-522, A-523 &
A-524 |
1 |
06-13600 |
$18.50 |
|
| 17 |
A-521 |
1 |
06-13617 |
$1.35 |
|
| 18 |
A-531 |
1 |
06-13618 |
$0.06 |
|
| 19 |
A-546 |
1 |
06-13619 |
$3.05 |
|
| 20 |
A-547 |
1 |
06-13620 |
$18.80 |
|
| 21 |
C-503 |
1 |
06-13621 |
$136.20 |
|
| 22 |
A-554 |
2 |
06-13622 |
$13.60 |
|
| 23 |
A-525 |
1 |
06-13623 |
$2.35 |
|
| 24 |
A-508 |
1 |
06-13624 |
$1.97 |
|
| 25 |
A-511 |
1 |
06-13625 |
$5.95 |
|
| 26 |
A-510 |
1 |
06-13626 |
$1.42 |
|
|
|
|
