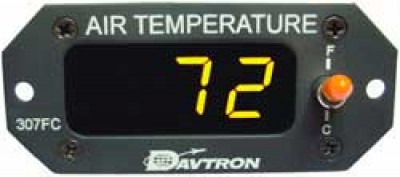

Model 307FC
PN 10-08513

Features:
• Minimum panel space
• Light weight
• Automatic dimming
• Miniature remote probe
• LED display
• Engraved Faceplate
• Centigrade
• Fahrenheit
• FAA - PMA
Specifications:
• Range 301C -40°C to +100°C
• Range 301F -40°F to +199°F
• Input Voltage 14 volts/ 28 volts
• Input Current 150 M.A.Max.
• Operating Temp. -25°C to +60°C
• Accuracy ±1% of full scale
• Weight 4 oz.
• Warranty one year

Download Mechanical Specifications Here.

The digital O.A.T. replaces one of the most difficult instruments to read in the cockpit.
Complete with digital probe

Model 307FCI
PN 11-05881

Features:
• Minimum panel space
• Light weight
• Automatic dimming
• Miniature remote probe
• LED display
• Engraved Faceplate
• Centigrade
• Fahrenheit
• FAA - PMA
Specifications:
Range -40°C to +100°C
Range -40°F to +199°F
Input Voltage 14 volts/ 28 volts
Input Current 150 M.A.Max.
Operating Temp. -25°C to +60°C
Accuracy ±1% of full scale
Weight 4 oz.
Warranty one year

Download Mechanical Specifications Here.

Complete with digital probe

Model 307CD

Model 307FD

MODEL 307CD & FD
Centrigrade & Fahrenheit
Intercooler Differential
CD - PN 10-03318
FD - PN 11-05882

Features:
• Minimum panel space
• Light weight
• Automatic dimming
• Miniature remote probe
• LED display
• Engraved Faceplate
• Centigrade
• Fahrenheit
• FAA - PMA
Specifications:
• Range -65°C to +150°C
• Range -70°F to +290°F
• Input Voltage 14 volts/ 28 volts
• Input Current 150 M.A.Max.
• Operating Temp. -25°C to +60°C
• Accuracy ±1% of full scale
• Weight 4 oz.
• Warranty one year

Download Mechanical Specifications Here.

Complete with 2 Analog Probes
