Engine Parts - Fuel Pumps - Andair

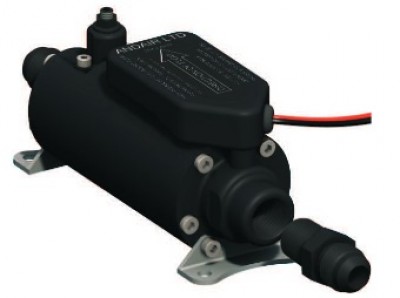

ANDAIR FUEL BOOST PUMPS

The high pressure fuel boost pump from Andair features a brushless motor which is light weight, powerful, and reliable. The pump components are D2 tool steel providing unequalled wear characteristics. The model PX375-40A-5-25 boost pump is furnished with a BLX-150 controller that is needed to drive the pump. This pump was designed to meet the requirements of an engine such as the Lycoming IO-360 at full power. The model XP375-40A-5 has none of the pressure relief or bypass features of the boost pump and is designed for a smoke system or transfer fuel from tank to tank. This pump is furnished with a BLX-165 controller.

Integral bypass and pressure relief valve.
11-14V DC, 6 amps max
Flow: 16 GPH @ 25 PSI
Open Flow: 56 GPH @ 8 PSI
Pressure drop in bypass mode @ 36 GPH: <0.5 PSI
No flow max pressure: 26 PSI
Weight: 460g (16.23 oz)
Soft Start - Continuous Duty
Self Priming to 10ft (3M) Head through 3/8" tube.
Aerospace Grade Aluminium Body.
AN-6 male fittings.
Mounting bracket included.

Description	Part No.	Price	Buy
ANDAIR FUEL BOOST PUMP	07-01334	$720.00
ANDAIR SMOKE TRANSFER PUMP	07-01335	$518.00

Accessories	Part No.	Price	Buy
ANDAIR BOOST PUMP BRACKET KIT	07-01334-1	$38.85
