KLIXON 7270 AND 7271 CIRCUIT BREAKERS

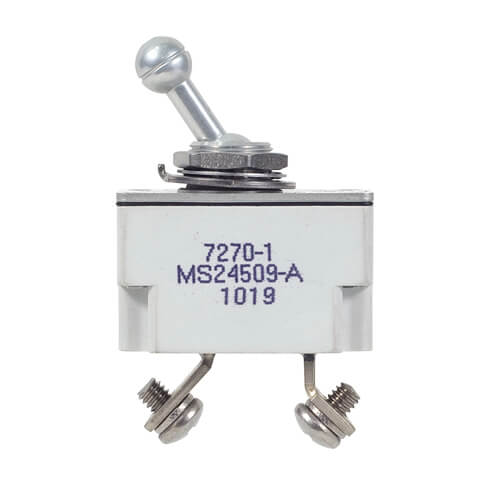

The Klixon 7270/7271 series circuit breakers were designed to utilize less behind panel space while protecting wire and cable in aircraft and ground support equipment on either 120 VAC, 400 Hz or 30 VDC systems. The units are available with neck mounting (7270-1 and 7271-8) or standard cover plate (7270-7 and 7271-3). In each of these Klixon circuit breakers, the bi-metallic element assures uniform current distribution throughout its responsive area. This design reduces current density at the critical areas, resulting in an element having a much higher interrupting capability than conventional design. Inherently resistant to shock and vibration, the Klixon disc element is capable of precise calibration settings and will retain the initial calibration within close tolerances throughout the service life of the breaker. Both circuit breakers have conventional actuator action; i.e., the toggle actuator on the 7270 moves to the OFF position for trip indication and the button the 7271 pops out. A standard black button with a white collar is used. Features: • Trip-free • Snap-acting Thermal Element • Simplicity of Design • Lightweight • High Rupture Capacity - 3500 Amps, 120 VAC, 400 Hz 4000 Amps, 30 VDC • Small Size Click here to download Specification in PDF format Models Description Part No. Price Buy 7270-1 Circuit Breaker Series 7270-1-3 KLIXON CIRCUIT BREAKER 7270-1-3 $99.75 7270-1-5 KLIXON CIRCUIT BREAKER 7270-1-5 $99.75 7270-1-10 KLIXON CIRCUIT BREAKER 7270-1-10 $99.75 7270-1-15 KLIXON CIRCUIT BREAKER 7270-1-15 $99.75 7270-1-20 KLIXON CIRCUIT BREAKER 7270-1-20 $99.75 7270-1-25 KLIXON CIRCUIT BREAKER 7270-1-25 $99.75 7270-1-30 KLIXON CIRCUIT BREAKER 7270-1-30 $99.75 7270-1-35 KLIXON CIRCUIT BREAKER 7270-1-35 $99.75 7271-3 Circuit Breaker Series 7271-3-3 KLIXON CIRCUIT BREAKER 7271-3-3 $92.75 7271-3-5 KLIXON CIRCUIT BREAKER 7271-3-5 $96.85 7271-3-7.5 KLIXON CIRCUIT BREAKER 7271-3-7.5 $96.85 7271-3-10 KLIXON CIRCUIT BREAKER 7271-3-10 $96.85 7271-3-15 KLIXON CIRCUIT BREAKER 7271-3-15 $96.85 7271-3-20 KLIXON CIRCUIT BREAKER 7271-3-20 $96.85 7271-3-25 KLIXON CIRCUIT BREAKER 7271-3-25 $96.75 7271-3-35v KLIXON CIRCUIT BREAKER 7271-3-35 $96.85 7270-7 Circuit Breaker Series 7270-7-3 KLIXON CIRCUIT BREAKER 7270-7-3 $129.95 7270-7-5 KLIXON CIRCUIT BREAKER 7270-7-5 $129.95 7270-7-7.5 KLIXON CIRCUIT BREAKER 7270-7-7.5 $131.95 7270-7-10 KLIXON CIRCUIT BREAKER 7270-7-10 $106.95 7270-7-15 KLIXON CIRCUIT BREAKER 7270-7-15 $129.95 7270-7-20 KLIXON CIRCUIT BREAKER 7270-7-20 $127.95 7270-7-25 KLIXON CIRCUIT BREAKER 7270-7-25 $83.35 7270-7-30 KLIXON CIRCUIT BREAKER 7270-7-30 $129.95 7270-7-35 KLIXON CIRCUIT BREAKER 7270-7-35 $129.95 7271-8 Circuit Breaker Series 7271-8-3 KLIXON CIRCUIT BREAKER 7271-8-3 $91.50 7271-8-5 KLIXON CIRCUIT BREAKER 7271-8-5 $91.50 7271-8-7-1/2 KLIXON CIRCUIT BREAKER 7271-8-71/2 $90.25 7271-8-10 KLIXON CIRCUIT BREAKER 7271-8-10 $93.75 7271-8-15 KLIXON CIRCUIT BREAKER 7271-8-15 $96.75 7271-8-20 KLIXON CIRCUIT BREAKER 7271-8-20 $93.75 7271-8-25 KLIXON CIRCUIT BREAKER 7271-8-25 $96.75 7271-8-30 KLIXON CIRCUIT BREAKER 7271-8-30 $93.75 7271-8-35 KLIXON CIRCUIT BREAKER 7271-8-35 $93.75
