| The new battery will deliver more power and significantly better shelf life than traditional VRLA batteries. Developed in-house by the engineering team at Gill Battery, a subsidiary of Teledyne Technologies, Inc. and thoroughly tested by an independent test and measurement firm, the 7641-20 employs an optimal Lead alloy to enable the best possible performance in this chemistry. The 7641-20 is also FAA and PMA certified. The benefit to aircraft owners and maintenance facilities is a new sealed, VRLA battery that provides exceptional power and previously unheard of shelf life as well as excellent durability and reliability. |
| |
|
| |
State of the art features: |
| |
• Improved Shelf Life - Best Shelf Life in Lead-Acid Chemistry
• Lower Weight
• Dependable
• Durable
• High Reliability through Engineered Proecessoes
• Improved Energy Density
• Best Discharge and Recharge Efficiency in Value-Regulated Lead-Acid
• Robust Construction
• Tested and Approved of to DO-160E
• FAA/PMA Approved |
|
|
SPECIFICATIONS
|

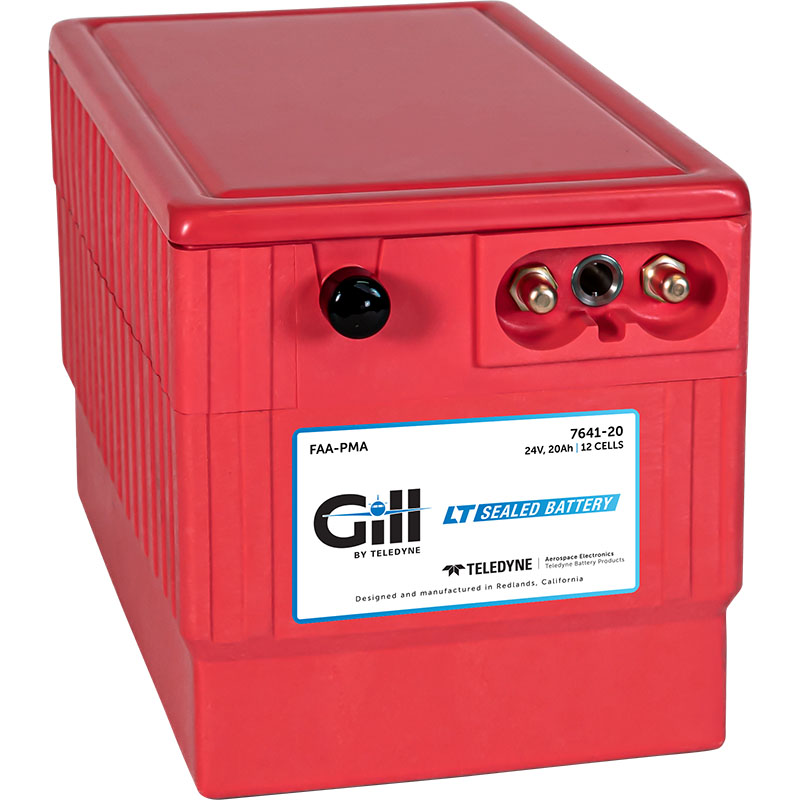

| Model No. 7641-20 |
LT Series Battery |
| Volts |
24 |
| Ah Rating |
20Ah at the 1 Hour Rate |
| 30 minute Emergency Capacity |
35 Amps |
| Weight |
44 Lbs. |
| lpp (Amps) STD |
24°C
(75°F) 1980
|
-18°C
(0°F) 1980
|
-30°C
(-22°F) 1047
|
| lpr (Amps) STD |
24°C
(75°F) 385
|
-18°C
(0°F) 385
|
-30°C
(-22°F) 554
|
|
7641-20 FAA-PMA ELIGIBLE INSTALLATION
|
| Bell |
206A, 206B, 206L, 206L-1, 206L-3 with STC SR01406LA |
| McDonnell Douglas (Hughes) models |
369, 369A, 369H, 369HM, 369HS, 369HE, 369D, 369E, 369F, 369FF, 500N, 600N with STC Kit SRO 1427LA installed. |
| Schweizer Aircraft Corporation |
269D (333) |
|
Electrical - Batteries
