| The KI203, KI208, KI204, & KI209 indicators feature an internal
VOR/ LOC converter and are compatible with the KX155 transceiver. The KI203
& KI204 have rectilinear meter movement, while the KI208 & KI209 feature
pivot needle action. The KI206 has rectilinear meter movement and works
with the KX165 & KNS80. The KI209 includes GPS interface capability. |
| |
|
| |
|
| |
|
| |
|
 |

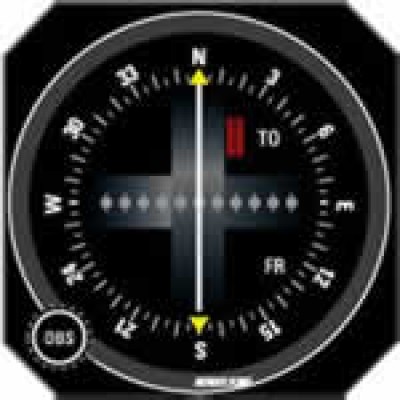

The KI 203 VOR/LOC Indicator with built-in
VOR/LOC converter and scallop rejection filter has rectilinear needle action
and an optically coated glass lens. Dimensions: 3.25" X 3.25" X 9.85" |
| |
|
 |
The KI 209 VOR/LOC/Glideslope Indicator
with built-in VOR/LOC converter has pivoted needle action and a plastic
lens. Requires input from external glideslope receiver. Dimensions: 3.25"
X 3.25" X 8.00" |
| |
|
 |
The KI 209A indicator are similar to the
KI 208 and KI 209, respectively, but also interface with the KLN 89/89B
GPS. Both feature internal relays to switch between VOR/LOC and GPS modes;
an external selector switch is required. |
| |
|
 |
The KI 204 VOR/LOC/Glideslope Indicator
with built-in VOR/LOC converter and scallop rejection filter has rectilinear
needle action and an optically coated glass lens. Requires input from external
glideslope receiver. |
| |
|
 |
The KI 206 (VOR/LOC Glideslope Indicator
with synch) VOR/LOC/Glideslope Indicator has rectilinear needle action adn
an optically coated glass lens. Requires input from external VOR/LOC converter
and external glideslope receiver. |
| |
|
 |
The KI 208 VOR/LOC Indicator with built-in
VOR/LOC converter features pivoted needle action and a plastic lens. |
| |
|
