CURTIS - QUICK DRAIN VALVES/HOSES/SAMPLING CUP
|
|

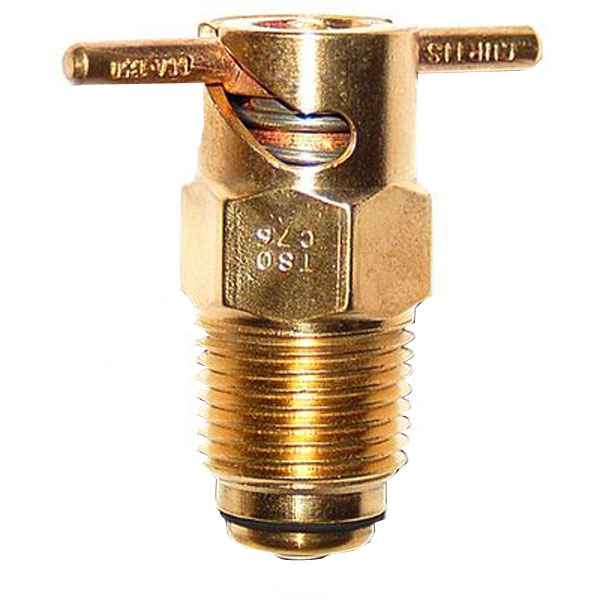

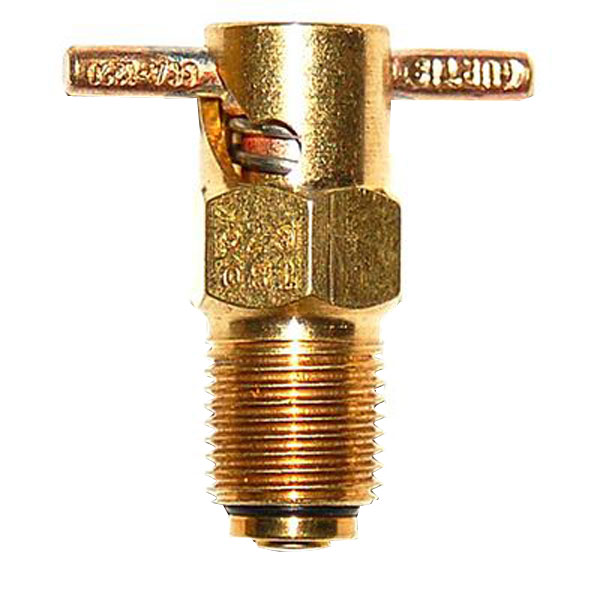

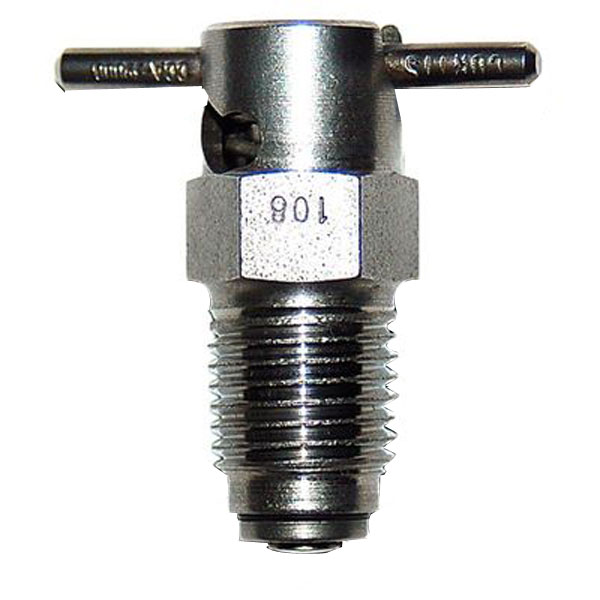

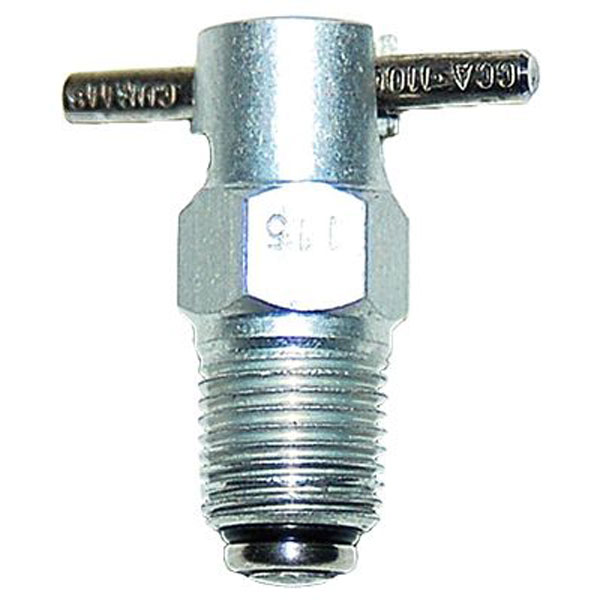

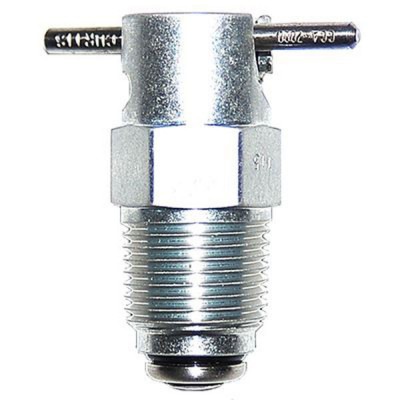

Quick Opening Brass Drain Valve
|
| |
|
Quick
opening brass drain valve for aircraft oil or fuel systems. A slight
twist opens valve. No safety wire needed in closed position. FAA approved.
TSO-C76 Approved.
|
| |
|
|
Download Curtis Oil Drain Valves
Application Chart in PDF |
|
Pipe Thread Valves
|
CCA-1250
Thread Size - 1/8" NPT
Brass
Length - 1.358"
Action - Spiral, Lock Open
Conforms to:
USAF Spec. 28208
USAF 49F9798-49
TSO-C76
|

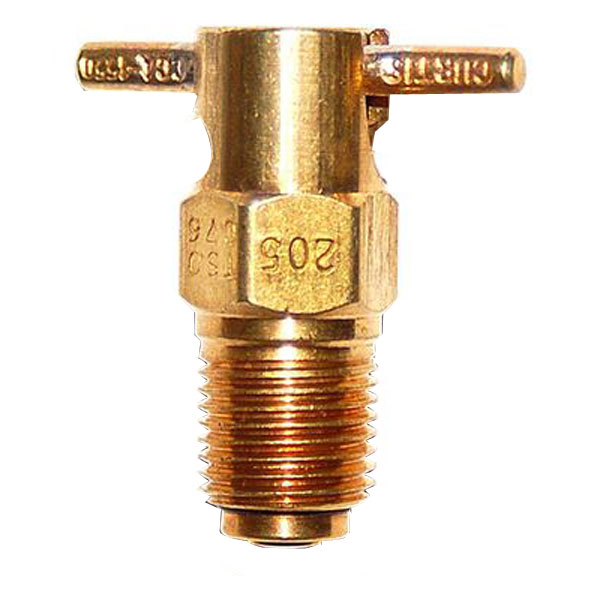

CCA-1550
Thread Size - 1/8" NPT
Brass
Length - 1.358"
Action - Push to Open,
Turn to Lock Open
Conforms to:
USAF Spec. 28208
USAF 49F9798-49
NSN 2915-00-202-6420
TSO-C76
|

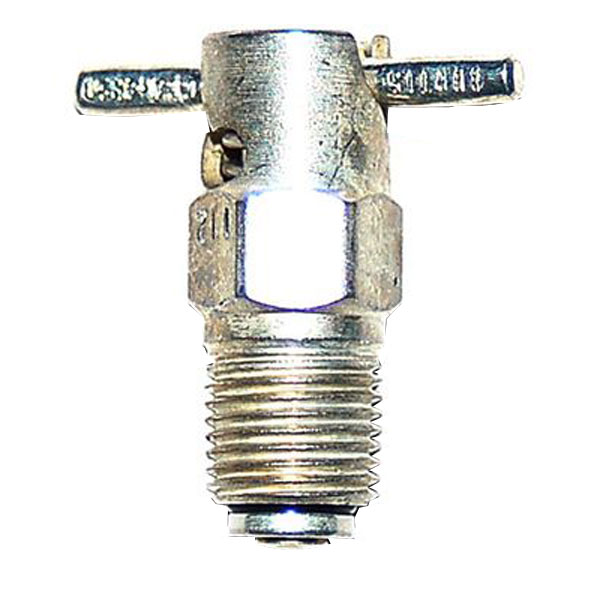

CCA-4850
Thread Size - 1/8" NPT
Brass, Cadmium Plated
Length - 1.358"
Action - Spiral, Lock Open
Conforms to:
USAF Spec. 28208
USAF 49F9798-49
NSN 2915-01-050-7496
TSO-C76
|
CCA-7450
Thread Size - 1/8" NPT
Brass, Cadmium Plated
Length - 1.358"
Action - Spiral, Lock Open
Conforms to:
USAF Spec. 28208
USAF 49F9798-49
(except length of operating pin)
NSN 4820-00-832-3778
TSO-C76
|
CCA-1600
Thread Size - 1/4" NPT
Brass
Length - 1.690"
Action - Push to Open,
Turn to Lock Open
Conforms to:
USAF Spec. 28208
USAF 49F9798-50
NSN 4820-00-903-6953
TSO-C76
|
PN 05-04045
$11.75
|
PN 05-01869
$10.50
|
PN 05-00686
$16.25
|
PN 05-03652
$13.25
|
PN 05-01870
$11.75
|
CCA-36150
Thread Size - 1/8" NPT
Brass, Cadmium Plated
Length - 1.358"
Action - Spiral,
Non-Lock Open
Conforms to:
USAF Spec. 28208
USAF 49F9798-49
TSO-C76
|

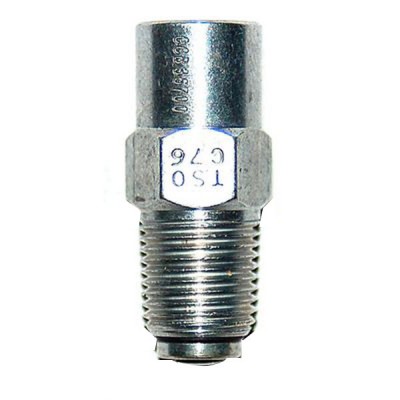

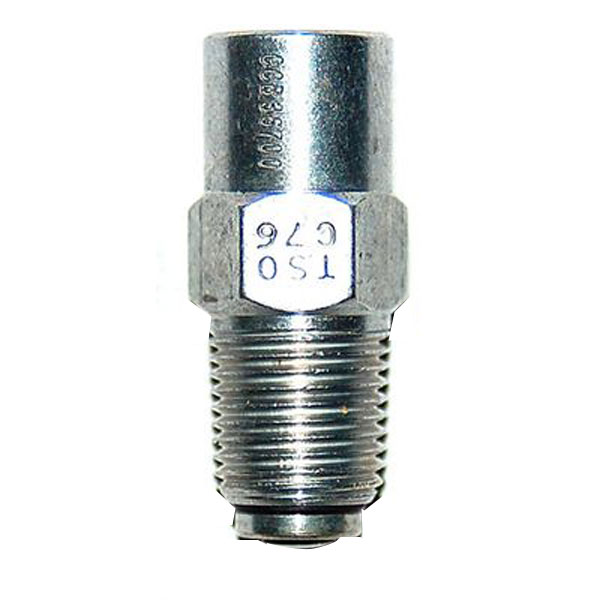

CCB-36700
Thread Size - 1/8" NPT
Brass, Cadmium Plated
Length - 1.358"
Action - Push to Open,
Non-Lock Open
Conforms to:
USAF 49F9798-49
TSO-C76
|
CCB-36750
Thread Size - 1/8" NPT
Stainless Steel (303)
Length - 1.358"
Lock Wire Drilled
Action - Spiral, Lock Open
Conforms to:
USAF Spec. 28208
USAF 49F9798-49
NSN 2810-00-859-8863
TSO-C76
|
CCA-1300
Thread Size - 1/4" NPT
Brass
Length - 1.690"
Action - Spiral, Lock Open
Conforms to:
USAF Spec. 28208
USAF 49F9798-50
TSO-C76
|
CCA-4950
Thread Size - 3/8" NPT
Brass, Cadmium Plated
Length - 1.920"
Action - Spiral, Lock Open
Conforms to:
USAF Spec. 28208
USAF 49F9798-51
NSN 4820-00-202-6015
TSO-C76
|
PN 05-03654
$16.25
|
PN 05-03659
$11.75
|
PN 05-03660
$26.75
|
PN 05-04046
$11.90
|
PN 05-04050
$18.65
|

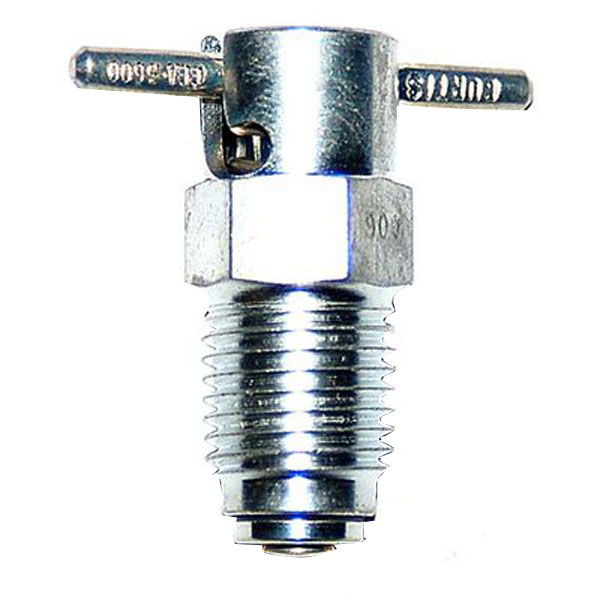

CCA-3600
Thread Size - 1/4" NPT
Brass, Cadmium Plated
Length - 1.690"
Action - Push to Open,
Turn to Lock Open
Conforms to:
USAF Spec. 28208
USAF 49F9798-50
TSO-C76
|
CCA-4800
Thread Size - 1/4" NPT
Brass, Cadmium Plated
Length - 1.690"
Lock Wire Drilled
Action - Push to Open,
Turn to Lock Open
Conforms to:
USAF Spec. 28208
USAF 49F9798-50
TSO-C76
|

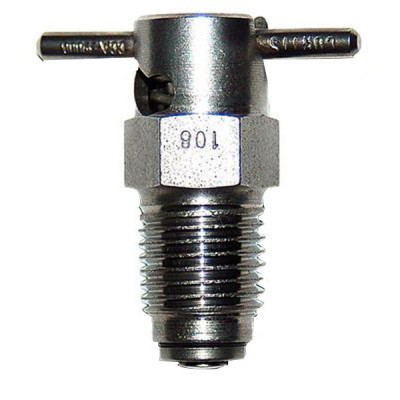

CCA-39000
Thread Size - 1/4" NPT
Stainless Steel (303)
Length - 1.690"
Action - Spiral, Lock Open
Conforms to:
USAF Spec. 28208
USAF 49F9798-50
TSO-C76
|
CCA-1350
Thread Size - 3/8" NPT
Brass
Length - 1.920"
Action - Spiral, Lock Open
Conforms to:
USAF Spec. 28208
USAF 49F9798-51
NSN 4820-00-256-9379
TSO-C76
|
CCA-1400
Thread Size - 1/2" NPT
Brass
Length - 2.154"
Lock Wire Drilled
Action - Spiral, Lock Open
Conforms to:
USAF Spec. 28208
TSO-C76
|
PN 05-04048
$16.50
|
PN 05-04049
$19.25
|
PN 05-03655
$32.50
|
PN 05-04047
$15.75
|
PN 05-03060
$25.75
|
CCA-1700
Thread Size - 1/2" NPT
Brass
Length - 2.154"
Lock Wire Drilled
Action - Push to Open,
Turn to Lock Open
Conforms to:
USAF Spec. 28208
NSN-2915-00-689-3000
TSO-C76
|
|
PN 05-01872
$25.50
|
|
Straight Thread Valves
|
CCA-4300
Thread Size - 7/16" -
20 NF3
Brass, Cadmium Plated
Length - 1.205"
Lock Wire Drilled
Action - Spiral, Lock Open
Conforms To:
USAF Spec. 28208, USAF 49F9798-52,
MIL-V-25023,
MS 29528-4
NSN 4820-00-107-3316
TSO-C76
|
CCB-4320
Thread Size - 7/16" -
20 NF3
Brass, Cadmium Plated
Length - 1.187"
Lock Wire Drilled
Action - Push to Open
Non-Lock Open
Conforms To:
USAF Spec. 28208, USAF 49F9798-52,
MIL-V-25023,
MS 29528-4
NSN 2915-00-532-7404
TSO-C76
|
CCA-5800-1
Thread Size - 7/16" -
20 NF3
Brass, Cadmium Plated
Length - 1.205"
Lock Wire Drilled
Action - Spiral,
Non-Lock Open
Conforms To:
USAF Spec. 28208, USAF 49F9798-52,
MIL-V-25023,
MS 29528-4
NSN 2915-00-824-8424
TSO-C76
|
CCA-5800-3
Thread Size - 7/16" -
20 NF3
Brass, Cadmium Plated
Length - 1.205"
Lock Wire Drilled
Action - Push to Open
Non-Lock OpenConforms To:
USAF 49F9798-52,
MIL-V-25023,
MS 29528-4
NSN 4820-01-048-6169
TSO-C76
|
CCA-4350
Thread Size - 9/16" -
18 UNF3
Brass, Cadmium Plated
Length - 1.234"
Lock Wire Drilled
Action - Spiral, Lock Open
Conforms To:
USAF Spec. 28208, USAF 49F9798-53,
MIL-V-25023,
MS 29528-6
NSN 4820-00-203-6321
TSO-C76
|
PN 05-03647
$17.90
|
PN 05-03657
$16.50
|
PN 05-03651
$18.85
|
PN 05-03694
$18.50
|
PN 05-03648
$21.50
|
CCA-6000
Thread Size - 9/16" -
18 NF3
Brass, Cadmium Plated
Length - 1.234"
Lock Wire Drilled
Action - Spiral, Lock Open
Conforms To:
USAF 49F9798-53,
MIL-V-25023,
NSN 4820-00-347-5096
TSO-C76
|
CCA-31300
Thread Size - 9/16" -
18 NF3
Brass, Cadmium Plated
Length - 1.234"
Lock Wire Drilled
Action - Push to Open
Non-Lock Open
Conforms To:
USAF Spec. 28208, USAF 49F9798-53,
MIL-V-25023,
MS 29528-6
TSO-C76
|
CCA-36400
Thread Size - 9/16" -
18 NF3
Brass, Cadmium Plated
Length - 1.234"
Lock Wire Drilled
Action-Spiral,
Non-Lock Open
Conforms To:
USAF Spec. 28208, USAF 49F9798-53,
MIL-V-25023,
MS 29528-6
TSO-C76
|
CAA-39500
Thread Size - 9/16" -
18 UNF-3A
Brass, Cadmium Plated
Length - 1.084"
Action - Push to Open
Non-Lock Open
Conforms To:
USAF 49F9798-53,
MIL-V-25023,
MS 29528-6
NSN 2915-00-565-8366
TSO-C76
|
CCA-39550
Thread Size - 5/8" -
18 NF3
Brass
Length - 1.625"
Lock Wire Drilled
Action - Spiral, Lock Open
Conforms To:
TSO-C76
|
PN 05-04051
$23.25
|
PN 05-04053
$25.25
|
PN 05-04055
$23.25
|
PN 05-03693
$31.25
|
PN 05-01873
$28.25
|
CCA-7250
Thread Size - 3/4" -
16 NF3
Brass, Cadmium Plated
Length - 1.483"
Lock Wire Drilled
Action - Spiral, Lock Open
Conforms To:
USAF Spec. 28208, USAF 49F9798-53,
MIL-V-25023, NSN 4820-00-444-9592
TSO-C76 |
CCB-36100
Thread Size - 3/4" -
16 NF3
Aluminum, Adonized
Length - 1.342"
Conforms Functionally To:
USAF Spec. 28208, MIL-V-25023,
NSN 4820-00-444-9592
TSO-C76
|
|
PN 05-04052
$26.25
|
PN 05-04054
$58.90
|
| Flush Valves |
CCA-7500-1
Aluminum, Anodized
Thread Size 3/4" - 16 NF3
Length - 1.437"
Action - Spiral, Spiral, Lock Open
Screwdriver Slot
Conforms Functionally To:
USAF Spec. 28208, MIL-V-25023
MS 29571, NSN 2915-00-860-3896
|
CCB-36450
Aluminum, Anodized
Thread Size 3/4" - 16 NF3
Length - .755"
Action - Push to Open, Turn to Lock
Meets lightning safety requirement
ML-C-38373, Paragraph 4.6.14
Conforms Functionally To:
MIL-V-25023
MS 29571, NSN 4820-01-073-1802
|
PN 05-03658
$72.25
|
PN 05-03653
$76.25
|
| Flush Valves Aapter Plate Assembly |
 |
PLT-275V
Flush Valve Adapter Plate Away
$106.95
PLT-275AV
Flush Valve Adapter Plate Assembly.With 6 holes
$118.95
Overall Dia. 2.75
Depth: 640,000-650,000
(From mounting surface to bottom hole dia: 1-1/2")
|
|
Hose Barb Valves
|
CCA-5400
Thread Size - 7/16" - 20 NF3
Brass, Cadmium Plated
Body Length - 1.205"
Stem Length - 2.365"
Lock Wire Drilled
Action - Spiral, Lock Open
Conforms Functionally To:
USAF Spec. 28208, MIL-V-25023,
TSO-C76
|
CCB-37000
Thread Size - 1/2" NPT
Brass
Body Length - 2.128"
Stem Length - 1.125"
Lock Wire Drilled
Action - Push To Open,
Turn To Lock Open
Conforms Functionally To:
USAF Spec. 28208, MIL-V-25023,
TSO-C76
|
CCA-3400
1/2" I.D. Hose
Brass
Length - 1.643"
Action - Spiral, Lock Open
Conforms Functionally To:
USAF Spec. 28208, MIL-V-25023,
NSN 2915-00-533-6592
TSO-C76
|
PN 05-04056
$24.50
|
PN 05-03061
$31.25
|
PN 05-01935
$13.85
|
|
Quick Drain Hoses
|
|
A simple push and twist action locks the CCB-39600 Series Quick Drain Hose in place and opens the drain valve. Internal O-ring seals assure a positive drip proof connection, and fuel flows through 5' of high grade vinyl tubing preventing spillage.
|
|
Model No.
|
Used with Quick Drain Hose
|
Part No.
|
Price
|
Buy
|
|
CCB-39600-1 |
CCA-1400, CCA-1700, CCA-39550 |
05-00138 |
$16.50 |
|
|
CCB-39600-2 |
CCA-1350, CCA-1650, CCA-4950 |
05-00139 |
$15.50 |
|
|
CCB-39600-3 |
CCA-1300, CCA-1600, CCA-3400, CCA-3600, CCA-4800, CCA-4900, CCA-3900 |
05-00141 |
$15.50 |
|
|
CCB-39600-4 |
CCA-4350, CCA-7250, CCA-36400, CCB-36650 |
05-00142 |
$15.50 |
|
|
CCB-39600-5 |
CCA-1250, CCA-1550, CCA-4300, CCA-7450, CCA-9950, CCB-36750 |
05-00143 |
$16.50 |
|
|
| |
|
Quick
Drain Security System |
|
 These Curtis quick drain valves are designed to accept a locking device that will prevent tampering and the theft of fuel. FAA TXO-C76 approved. the quick drain security system is available in sets of 2, 4, or 6 quick drain valves, and each valve comes with a lock. Included in each set are two master keys and a fuel sampling cup. The dash number on the model numbers below indicates the number of valves and locks included.
|
|
Model No. |
Contains |
Part No.
|
Price |
Buy |
|
CCA-39700-2 |
(2) CCA-39650
-Quick Drain Valves
(2) CCA-39660
-Quick Drain Locks
(2) CCA-39670
-Master Keys
(1) CCA-39680
-Sample Cup Opener |
05-01239
|
$37.75 |
|
|
CCA-39700-4 |
(4) CCA-39650
-
Quick Drain Valves
(4) CCA-39660
-
Quick Drain Locks
(2) CCA-39670
-
Master Keys
(1) CCA-39680
-
Sample Cup Opener |
05-01255
|
$68.50 |
|
|
CCA-39700-6 |
(6) CCA-39650
-
Quick Drain Valves
(6) CCA-39660
-
Quick Drain Locks
(2) CCA-39670
-
Master Keys
(1) CCA-39680
-
Sample Cup Opener |
05-01256
|
$96.75 |
|
|
|
|
Curtis Oil Drain Valves for Jabiru and Rotax
|
 |
|
Description
|
Application
|
Part No. |
Prices
|
Buy
|
Curtis Oil Drain Valve
1/2" - 20 Brass
Lockwire Drilled
Action-Spiral, Lock Open
|
Jabiru 2200, 3300
|
05-03698
|
$34.75
|
|
Curtis Oil Drain Valve
12mm - 1.75mm Brass, Length 1.45"
Lock Wire Drilled
Action-Spiral, Lock Open
|
Rotax 912F2,
912F3, 912F4,
914F2, 914F3,
914F4
|
05-03697
|
$34.25
|
|
|
| |
| |
Curtis 90 Degree Adapter for Jabiru and Rotax
|
| |
Description
|
Application
|
Part No.
|
Price
|
Buy
|
|
Jabiru
90 Degree
Adapter
CCA-2480
|
Jabiru
2200, 3300
|
08-06258
|
$49.75
|
|
|
Rotax
90 Degree Adapter
Thread Size:
12mm-1.75mm,
Internal/External
Brass
CCA-2470
|
Rotax 912F2,
912F3,
912F4,
914F2,
914F3,
914F4
|
08-06257
|
$49.85
|
|
|
| |
 Oil Drain Valve
Adapter Assembly |
|
Description
|
Part No. |
Prices
|
Buy
|
Rotax Oil Drain Valve
Adapter Assembly
|
05-03539
|
$82.50
|
|
|
CCB-36450AF Flush Valve
|
05-03658
|
$72.25
|
$72.25
|
Jabiru Oil Drain Valve
Adapter Assembly
|
05-03540
|
$82.50
|
|
|
|
| |
|
CURTIS SUPERIOR REMOVAL TOOLS
Curtis Superior Valve Co., Inc. has added a new product line to help with the installation and removal of Curtis flush mounted valves without damage. We have designed a socket that will eliminate the problem of damage as well as valve torque. |
| |
|
Name |
Description |
Part No.
|
Price
|
Buy
|
|
CST-716
|
Installation & removal of Curtis valves with 7/16" hex. Tool is used to to torque valves to desired specifications and also prevents valve damage on installation and removal.
Used on the following valves:
CAA-1250, 1550, 4850, 7450, 9950, 36150, CCB-36750 |
12-02244
|
$44.95
|
|
|
CST-78
|
Installation & removal of Curtis valves with 7/8"" hex. Tool is used to to torque valves to desired specifications and also prevents valve damage on installation and removal.
Used on the following valves:
CCA-1400, 1700, 39550, 39560, CCB-3700
|
12-02245
|
$46.95
|
|
|
CST-916
|
Installation & removal of Curtis valves with 9/16" hex. Tool is used to to torque valves to desired specifications and also prevents valve damage on installation and removal.
Used on the following valves:
CCA-1300, 1600, 3600, 4800, 4900, 5900, 39000 |
12-02246
|
$44.95
|
|
CST-1116 |
Installation & removal of Curtis valves with 11/16" hex. Tool is used to to torque valves to desired specifications and also prevents valve damage on installation and removal.
Used on the following valves:
CCA-1350, 1650, 2440, 2450, 2460, 4320, 4950, 5400, 5800-1 |
12-02090
|
$42.85
|
|
|
|
INSTALLING AND REMOVING FLUSH MOUNTED
For installing and removing flush mounted fuel valves PN CCB-36450 & CCB-36450-5
|
|
|
|
Description
|
Part No.
|
Price
|
Buy
|
CURTIS F-V TOOL CST-36450 |
12-02280
|
$65.75
|
|
|
|
| Similar Items |
Part No. |
Price |
Buy |
| CURTIS FUEL SAMPLING CUP | 05-17300 | $4.30 |
|
| STOW-A-WAY SAMPLE CUP HOLDER | 05-17220 | $8.95 |
|
| STOW-AWAY 8"FUEL TESTER HOLDER | 05-17210 | $9.75 |
|
|
|
